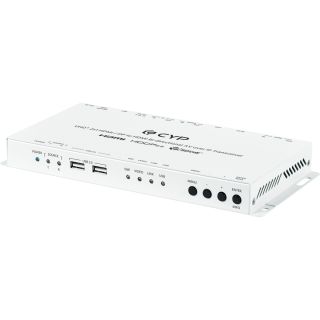

UHD+ 2x1 HDMI/DP to HDMI Bi-directional AV over IP Transceiver W/USB 2.0 HUB - Cypress AVIP-P5102TR-B1F-W

UHD+ 2x1 HDMI/DP to HDMI Bi-directional AV over IP Transceiver W/USB 2.0 HUB - Cypress AVIP-P5102TR-B1F-W

Artikelnummer: AVIP-P5102TR-B1F-W
HAN: AVIP-P5102TR-B1F-W
Kategorie: AV over IP
Hersteller: Cypress Technology

This is a brand new meaning of transceiver, able to transmit and receive signal at the same time, no need to configure transmitt ...

1.231,96 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This is a brand new meaning of transceiver, able to transmit and receive signal at the same time, no need to configure transmitter/receiver anymore. The unit is designed for high-quality, AV extension with minimum latency through IP transmit. 1G Ethernet, RS232, IR and USB 2.0 hub. USB KVM routing flexibility enables a wide range of multi-user, control room, or on-demand installation scenarios.

Broadcast quality scaler, programmable to scale up or down any resolutions up to 4K
Video wall image splitting with bezel correction
Analog stereo audio extension, insertion and extraction (insertion and extraction requires optional control center or control software)
Signal transmission interfaces with 10-Gigabit Ethernet switches via XFI (IEEE 802.3ae) compatible SFP+ fiber modules
Basic configuration via front panel buttons with an On-Screen Display (OSD)
Supports a special Simultaneous Mode for USB extension allowing a host connected to a single Transceiver to connect to up to 7 Transceivers with USB devices connected

Interfaces
Input Port	1 HDMI (Type A) 1 DisplayPort(Female) 1 Analog(3.5mm)
Output Port	1 HDMI (Type A) 1 Analog(3.5mm)
Bi-directional Port	1 10GbE LAN (SFP+)
Control I/O	1 Ethernet (RJ-45) 1 IR Extender (3.5mm) 1 IR Blaster (3.5mm) 1 RS-232 (3-pin terminal block) 1 USB (Mini-B) 2 USB(Type A)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4096x2160p@60 YUV 4:4:4
Output Signal Types	4096x2160p@60 YUV 4:4:4
		Resolutions
Maximum Input	HDMI	4096×2160p@60 YUV 4:4:4
	DP	4096×2160p@60 YUV 4:4:4
Maximum Output	SFP+ (Streaming)	4096×2160p@60 YUV 4:4:4
	HDMI	4096×2160p@60 YUV 4:4:4

Audio
Digital Format:	HDMI	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
	DP	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
	SFP+	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
Line Level	Line In	1 Vrms S/N Ratio: > 80dB (1kHz with 0dBFS)
	Line Out	1 Vrms S/N Ratio: > 80dB (1kHz with 0dBFS)

Power
Power Supply	12V/3A DC (Locking)
Power Consumption	18.51W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	White
Dimensions (W×H×D)	231.5mm×25mm×158mm [Case Only] 231.5mm×25mm×167mm [All Inclusive]
Weight	916g

Field Firmware Update
PC

ORDERING INFORMATION

Model No.	Product Description
AVIP-P5102TR-B1F-W	UHD+ 2x1 HDMI/DP to HDMI Bi-directional AV over IP Transceiver W/USB 2.0 HUB
AVIP-P5101TR-B1F	UHD+ 2x1 HDMI/DP to HDMI Bi-directional AV over IP Transceiver W/HID USB
CH-V502TR	UHD+ HDMI/USB AV over IP Transceiver
COH-TR7	UHD+ HDMI/DP/USB AV over IP Transceiver
