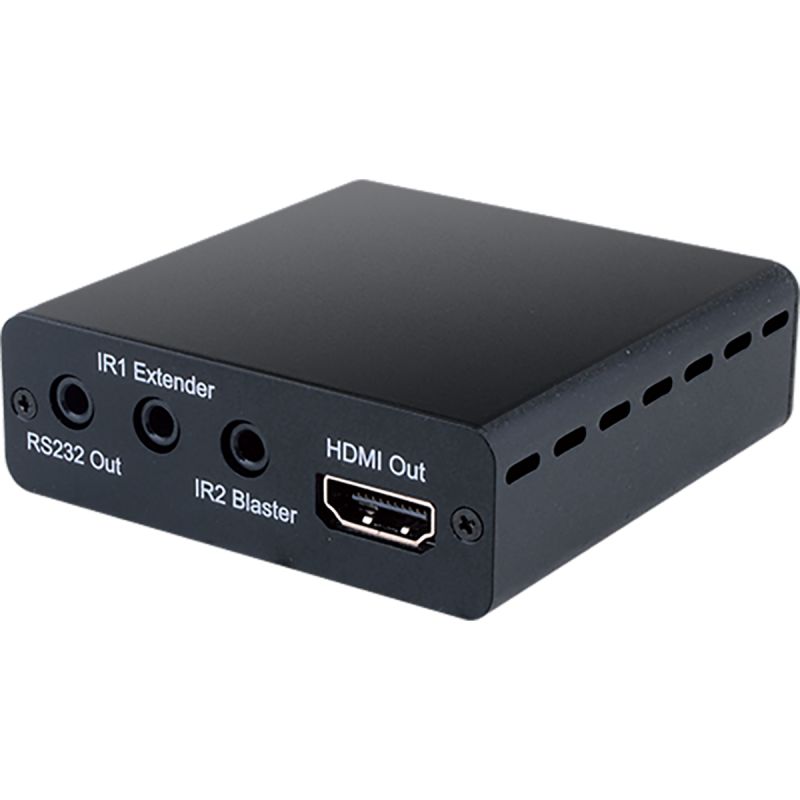

?This HDBaseT? HDMI over Single CAT5e/6/7 Transmitter and Receiver Set can send uncompressed audio/video over a single run of CAT5e/6/7 cable up to 100m (1080p) and has the added benefit of control through the built-in RS-232 and 2-way IR.
- ?HDMI including 3D and 4K2K (Ultra HD) support, HDCP and DVI compliant
- Supports HDCP repeater and CEC functions
- Simultaneous transmission of uncompressed video, audio and data over a single Cat.5e/6 / 7 cable up to 100m/328ft at 1080p and 70m/230ft at 4K
- Supports HD resolutions up to 1080p@60Hz/36-bit and Ultra HD (4K2K)
- Audio support up to LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
- Supports HDBaseT Technology including 2-Way IR and RS-232
- Installation friendly
HDMI Bandwidth | 10.2Gbps |
HDBaseT Bandwidth | 10.2Gbps |

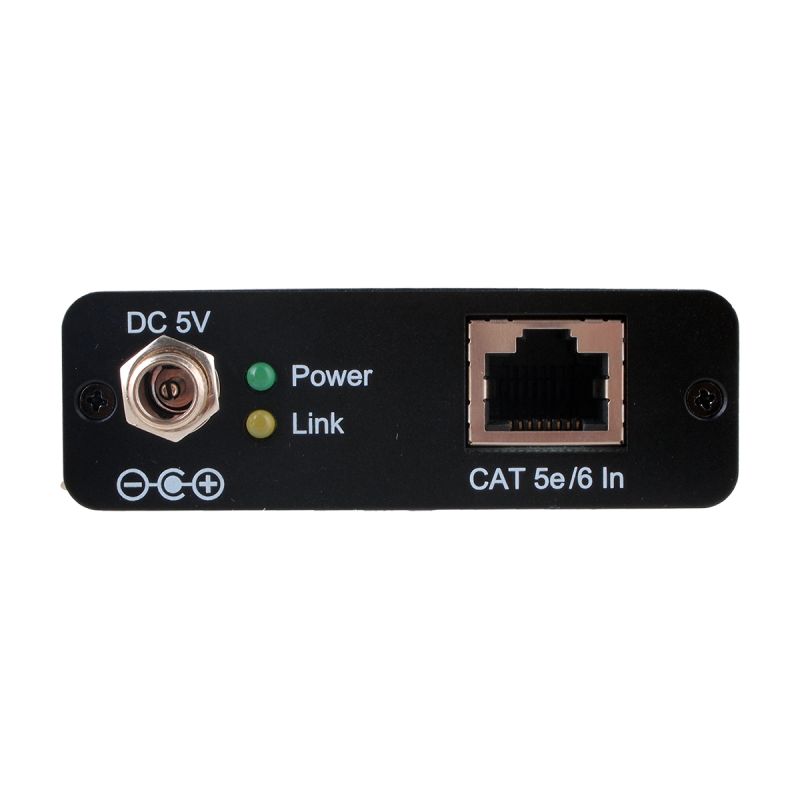

Input Ports | 1×CAT5e/6/7, 1×IR Extender |

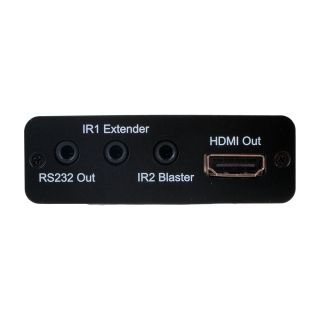

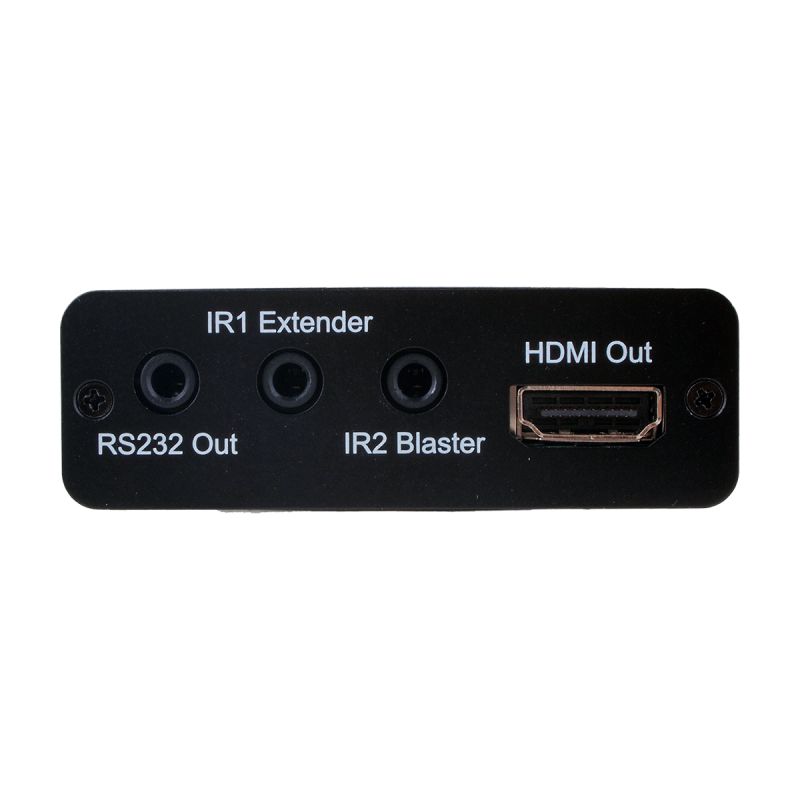

Output Ports | 1×HDMI, 1×RS-232, 1×IR Blaster |
IR Frequency | 30 - 50kHz |
Baud Rate | Up to 115200/sec |
Power Supply | 5 V/2.6 A DC (US/EU Standards, CE/FCC/UL certified) |
ESD Protection | Human Body Model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) |
Dimensions | 71 mm (W)×79 mm (D)×23 mm (H) |
Weight | 245g |
Chassis Material | Aluminum |
Silkscreen Color | Silver |
Operating Temperature | 0 °C~40 °C/32 °F~104 °F |
Storage Temperature | ?20 °C~60 °C/?4 °F~140 °F |
Relative Humidity | 20~90 % RH (non-condensing) |
Power Consumption | 6W |
