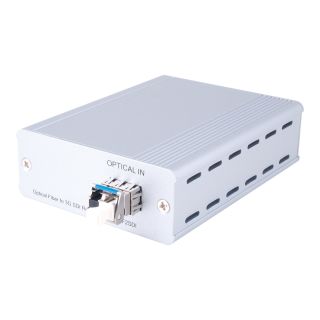

SDI over Optical Fiber Extender - Cypress CLUX-OF2SDI

SDI over Optical Fiber Extender - Cypress CLUX-OF2SDI

Artikelnummer: CLUX-OF2SDI
HAN: CLUX-OF2SDI
Kategorie: Extenders
Hersteller: Cypress Technology

The SDI to Optical Fiber Extender set is designed to extend your SDI signals over Optical Fiber for long distance transmission u ...

837,73 €

exkl. 19% USt. , zzgl.

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

The SDI to Optical Fiber Extender set is designed to extend your SDI signals over Optical Fiber for long distance transmission up to 10km. Signals from 50 Mb/s to 3 Gb/s bandwidth can be sent without loss or compression with thinner, lighter cables for easy installations.

SMPTE 287-2006 compliant
Robust error-free transmission of signals from 50Mb/s to 3Gb/s up to 10 km over single-mode fiber (distance is dependent on the fiber module used).
Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
Supports SDI input modes:

SD-SDI: SMPTE 259M-C, at bitrates of 270 Mbit/s
HD-SDI: SMPTE 292M, at bitrates of 1.485 Gbit/s and 1.485/1.001 Gbit/s
3G-SDI: SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s

Supports integrated SDI audio up to maximum 16 channels of 48 kHz audio
Automatic video mode detection (3G/HD/SD)
Faster data transmission
Lower power consumption

*Transmitter*
Input Ports	1×BNC (SD/HD/3G-SDI)
Output Ports	1×Single-Mode Fiber Optical (LC connector)
*Receiver*
Input Ports	1×Single-Mode Fiber Optical (LC connector)
Output Ports	1×BNC (SD/HD/3G-SDI)
SDI Timging Support	SD-SDI: SMPTE 259M-C, at bitrates of 270 Mbit/s HD-SDI: SMPTE 292M, at bitrates of 1.485 Gbit/s and 1.485/1.001 Gbit/s 3G-SDI: SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s
SDI Cable Distance	3G up to 100 m (BELDEN 1694A cable) HD up to 200 m (BELDEN 1694A cable) SD up to 300 m (BELDEN 1694A cable)
Optical Fiber Cable Distance	Up to 10 km
Power Supply	5 V/2.6 A DC (US/EU standards, CE/FCC/ UL certified)
Dimensions	78.5 mm (W)×143 mm (D)×30 mm (H)
Weigh	200 g
Chassis Material	Aluminum
Silkscreen Color	Silver
Operating Temperature	0 ºC~40 ºC/32 ºF~104 ºF
Storage Temperature	−20 ºC~60 ºC/−4 ºF~140 ºF
Relative Humidity	20~90 % RH (non-condensing)
Power Consumption	3 W (each)
