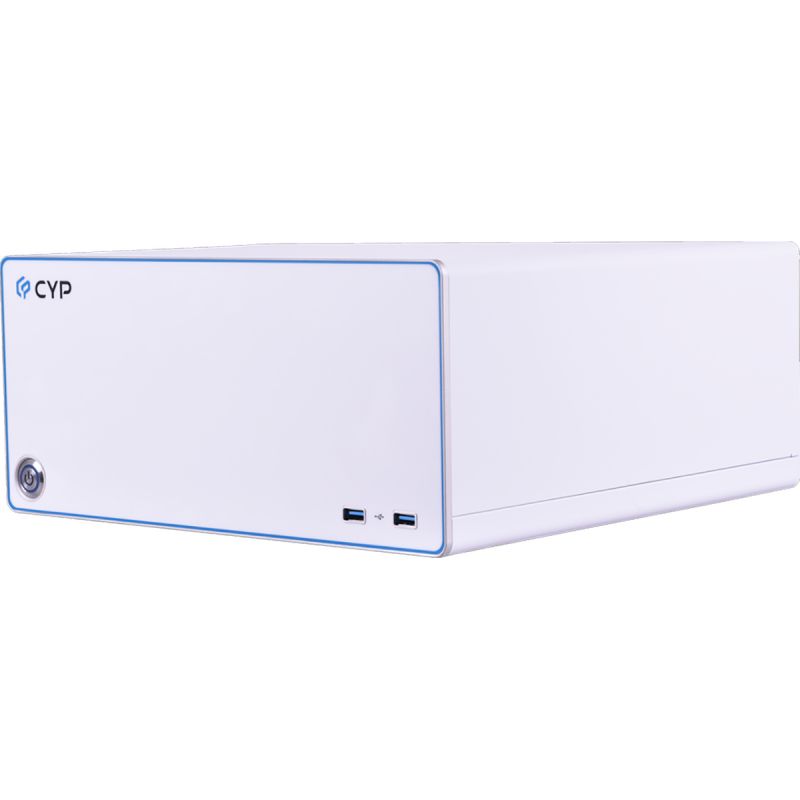

The MED-AS402 video recorder is dedicated design to integrate with medical devices for video recording during operation or diagnosis. It supports high quality video of 4K@60 video input and output to display over HDMI, Display Port & DVI-D. The video from medical devices such as endoscope, X-Ray system, ultrasonic, da vinci surgery ?etc. exports to monitor and recording to build in hard disk in recorder simultaneously. This medical recorder supports real time display and recording and comply with medical criteria for fulfill medical application.
? 4K@60 UHD+ video are able to be recorded in build in hard disk when playing the video from medical devices
? Recording video format of H.264 & H.265 to offer high quality video recording with optimized storage file capacity
? Video source preview supported
? CE/FCC/EN60601-1/UL-60601-1 Certification to fulfill medical application
System | CPU | Intel® Core? i7-7700 3.6GHz | ||
Memory | 16GB, Up to 32GB DDR4 2133MHz | |||
Storage | 1TB, based on customers? requirement | |||
System input rating | Input Voltage | 100-240 AC | ||
Video | Input Resolution | Up to 4K | ||
Output Resolution | Up to 4K | |||
Compression Format | MPEG2 H.264, H.265 | |||
Audio | Audio | 2 (Mic-in/ Line-out) (Mic-in could be configured as "Line-in" under Win OS.) | ||

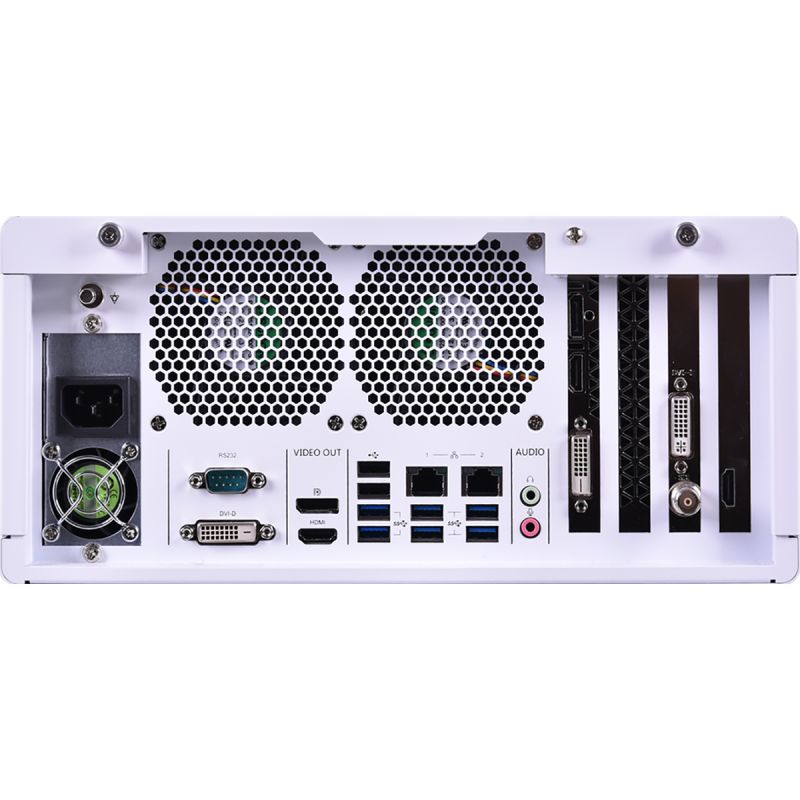

IO Port | Video Display | 1 x DVI, 1 x Display Port, 1 x HDMI (can be optional) | ||
Video Capture | 4Kp60: 1 x HDMI | |||
FHD (max): Y/PbPr, CVBS, S-Video, SDI, HDMI, DVI-I (can be optional) | ||||
COM | 1 x RS232 | |||
USB Ports | 6 x USB 3.0 ports | |||
4 x USB 2.0 ports | ||||
LAN | 2 x RJ-45 | |||
Audio | 2 x Audio out/in 3.5mm stereo jack connectors | |||
Power Supply | Input Voltage | 100-240V AC, 47-63Hz, 500W | ||
Certification | UL/CB 60601-1, CE &FCC Class B certified | |||
Environment | Temperature | 0 ~ 40°C(Operating) -10 ~50°C (Storage/Transportation) | ||
Humidity | 10%-90% @ 40°C (non-condensing) (Operating) 5 ~90% (non-condensing) (Storage/ Transportation) | |||
Pressure | 700-1060 hPa (Operation) 500-1060 hPa (Storage/Transportation) | |||
Physical Characteristics | Dimensions (W x H x D) | 329.5mmX320mmX145mm | ||
Weight | 4.65Kg | |||
