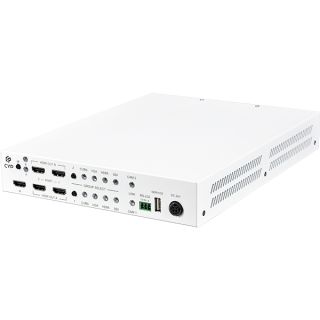

This unit contains 4 HDMI, 2 SDI, 2 VGA, and 2 set of CVBS input, and 5 HDMI
outputs to pairing to the medical standard Monitor for giving out the multicontent
combination by professional video window processing. With standard
medical devices interface, the unit is able to transmit signal up to 1080p@60,
deep colour up to 12 bit for both inputs and outputs.
By using the control PC tool could easily achieve the layout to fit the scenario,
also supports the ability to store a multi-window arrangement as a preset that
can be recalled later. With RS-232 and USB port for console communication
and firmware updates, to provide efficiency way of medical monitor depiction
presentation.
- Deep color support 8/10/12 bit source on both in and out
- Supports conversion of multiple video formats to HDMI outputs.
- Supports SDI Standards of SMPTE 259M-C, SMPTE 292M, and SMPTE424M/425M-A
- Supports SDI bit rates at 270Mbps, 2.970Gbps & 2.970/1.001Gbps, and1.485Gbps & 1.485/1.001Gbps.
- The Multiviewer would be set into following mode:
? PIP (Picture In Picture)
? SBS (Side by Side)
? QUAD (Quad View)
? POP (Picture of Picture) - Supports RS-232 transition.
- FW update via USB flash drive.
| Interfaces | |
|---|
| Input Port | - 4 HDMI
- 2 SDI(BNC)
- 2 VGA(BNC)
- 2 CVBS(BNC)
|
| Output Port | |
| Control I/O | - 1 RS-232 (DB-9)
- 1 USB (Type-A)
|
| Video | |
|---|
| HDMI Compliance | |
| HDCP Compliance | |
| Input Signal Types | |
| Output Signal Type | |
| Resolutions | | |
|---|
| Maximum Input | HDMI | |
| | SDI | |
| VGA
| |
| CVBS
| |
| Maximum Output | HDMI | |
| Power | |
|---|
| Power Supply | |
| Power Consumption | |
| Enclosure | |
|---|
| Chassis Material | |
| Chassis Color | |
| Dimensions (W×H×D) | - 220mm×43mm×293mm [Case Only]
- 220mm×43mm×310mm [All Inclusive]
|
| Weight | |
| Field Firmware Update | |
|---|
| Interface | |
| Ordering Information | |
|---|
| Model No. | Product Description |
| MED-AS60 | - Multi-input Switcher with Multi-Window Display
|
