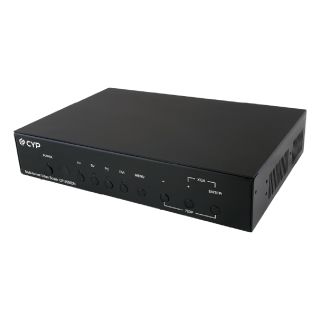

Multi-Format to DVI Scaler - Cypress CP-255IDN

Multi-Format to DVI Scaler - Cypress CP-255IDN

Artikelnummer: CP-255IDN
HAN: CP-255IDN
Kategorie: Scaler
Hersteller: Cypress Technology

This Multi-Format to DVI Scaler is capable of scaling and switching from Composite Video, S-Video, PC (VGA) and DVI input signal ...

550,86 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This Multi-Format to DVI Scaler is capable of scaling and switching from Composite Video, S-Video, PC (VGA) and DVI input signals to a DVI output. A corresponding analog stereo audio input can be switched and sent to the stereo audio output with the video source selection. It has the added benefit of control through front panel buttons, IR remote, or RS-232, and there is on-screen menu (OSD) providing setting selection and system information. The device provides a full range of output resolutions, up to 1080p for HDTV resolutions, and WUXGA (RB) for PC resolutions.

Supports the conversion of multiple video and audio formats to DVI
Supports synchronized output for input video and output audio signals
Supports 3D de-interlacing, noise reduction and Comb filter
Supports frame rate conversion
Supports control via RS-232, IR Remote handset and front panel

Interfaces

Input Port

1×DVI-I (Dual Link)

1×VGA (HD-15)

1×S-Video(Mini Din 4-Pin)

1×CV (BNC)

1×Stereo Audio (3.5mm)

1×Stereo Audio (RCA)

Output Port

1×DVI
1×3.5mm Mini-jack

Video
DVI Compliance	DVI 1.0 (HDMI 1.3)
HDCP Compliance	HDCP 1.4
Input Signal Type	DVI :1080p@60 VGA : WUXGA CV/SV : NTSC, NTSC4, PAL, PAL-M, PAL-N & SECAM
Output Signal Type	1080p@60 & 1920x1200@60RB
		Resolutions
Maximum Input	DVI	1080p & WUXGA (RB)
	VGA	1920x1200@60
	S-Video	480i@60/576i@50
	Composite Video	480i@60/576i@50
Maximum Output	DVI	1920×1080p@60 1920×1200p@60RB

Power
Power Supply	12V/1.25A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption	6.2W

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	215mm×47mm×165mm
Weight	970g

Field Firmware Update
Interface	USB

Ordering Information

Model No.	Product Description
CP-255IDN	Multi-Format to DVI Scaler
