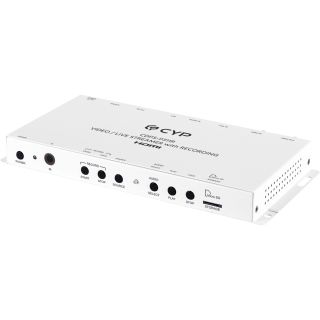

HDMI/VGA Video Streamer with Recording - Cypress CDPS-P311R-W

HDMI/VGA Video Streamer with Recording - Cypress CDPS-P311R-W

Artikelnummer: CDPS-P311R-W
HAN: CDPS-P311R-W
Kategorie: Scaler
Hersteller: Cypress Technology

This Video Streaming Recorder makes online broadcasting of live video, with a locally stored archive, an easy and simple process ...

570,22 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This Video Streaming Recorder makes online broadcasting of live video, with a locally stored archive, an easy and simple process. Video sources from cameras, PCs, video game consoles, etc. are a breeze to connect for immediate broadcast and recording. Video content up to 4K UHD+ is supported and is automatically scaled to a resolution that is more appropriate for efficient streaming. In addition to the standard HDMI input, a VGA input with a paired analog stereo audio input is also available as a source. An HDMI output is provided for local monitoring of the selected input source.

1 HDMI input and 1 VGA input
1 HDMI output (for local source monitoring)
HDCP 1.x and HDCP 2.2 compliant (Note: HDCP encrypted sources cannot be streamed over the Internet or recorded and will be blacked out)
HDMI input/output supports resolutions up to 4K UHD (18Gbps, 4K@60Hz 4:4:4, 8-bit)
VGA input supports resolutions up to 1920×1080@60Hz
Advanced H.264 video streaming and recording is provided at QVGA (320×240), VGA (640×480), 720p, or 1080p at up to 60fps
Recorded video can be stored on a locally inserted SD card, USB thumb drive, or to a designated network drive
Can act as a streaming server (using RTP/RTSP protocols) or streaming client (using the RTMP protocol)
Audio embedding and mixing support with the analog stereo audio input Note: Analog audio can only be mixed with LPCM 2.0 audio from the HDMI source
Supports scheduled recording with an internet updated calendar
Supports text overlays over live broadcasts including a countdown timer
Integrated downscaling function will convert UHD video content (up to 4K@60Hz) down to 1080p or lower for live video broadcast and recording
Generates 4 simultaneous streams from the same video source (1080p@60fps, 1080p@30fps, VGA@30fps, QVGA@30fps) for easy system integration at multiple bandwidth targets
Supports automatic input switching
Advanced EDID management including Internal, External & User configured EDID selections
Control via front panel buttons, WebGUI, Telnet, RS-232, and IR

HDMI Bandwidth	18Gbps
VGA Bandwidth	165MHz
Input Ports	1×HDMI (Type-A) 1×VGA (HD-15) 1×Analog Stereo (3.5mm)
Output Port	1×HDMI (Type-A)
Data Storage	1×Card Slot (Micro SD)
Control/Streaming Port	1×LAN (RJ-45)
Control Port	1×RS-232 (DE-9)
Service Port	1×USB 2.0 (Type-A)
IR Frequency	30 – 50kHz (30 – 60kHz under ideal conditions)
Baud Rate	19200
Power Supply	5V/2.6A DC (US/EU standards, CE/FCC/UL certified)
ESD Protection (HBM)	±8kV (Air Discharge) ±4kV (Contact Discharge)
Dimensions (W×H×D)	231.5mm×25mm×108mm [Case Only] 231.5mm×25mm×117mm [All Inclusive]
Weight	668g
Chassis Material	Metal (Steel)
Chassis Color	Black
Operating Temperature	0˚C – 40˚C/32˚F – 104˚F
Storage Temperature	-20˚C – 60˚C/-4˚F – 140˚F
Relative Humidity	20 – 90% RH (Non-condensing)
Power Consumption	9.57W
