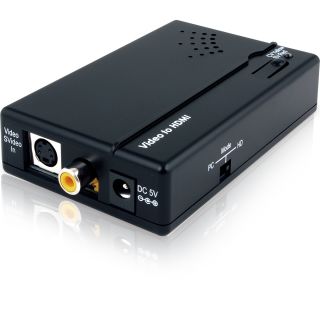

CV/SV to HDMI Converter with Audio Input - Cypress CM-398H

CV/SV to HDMI Converter with Audio Input - Cypress CM-398H

Artikelnummer: CM-398H
HAN: CM-398H
Kategorie: Scaler
Hersteller: Cypress Technology

This is a Video to HDMI™ converter box that can convert CV/SV (NTSC or PAL or SECAM system) to HDMI resolutions of XGA to UXGA o ...

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.

Beschreibung
Frage zum Artikel

This is a Video to HDMI™ converter box that can convert CV/SV (NTSC or PAL or SECAM system) to HDMI resolutions of XGA to UXGA or HD resolutions of 480p to 1080p. With frame rate conversion feature that allows users to view DVD, VCR or video game sources on the HD monitor/TV this device has an OnScreen Display function that allows users to easily select the output resolution and the audio input, after which both the video and audio signal are combined into an HDMI signal so they can be output to a compatible display

Operates in NTSC 3.58 and PAL & SECAM system
Can scale CV/SV to HDMI format
Output resolution: -- PC resolutions: XGA, SXGA, UXGA -- Component resolutions: 480p/576p, 720p@50 or 60,1080p@50 or 60
3D (frame based) motion adaptive YNR/CNR noise reduction
On-Screen Display
Advance 3D motion adaptive de-interlace
Automatic 2:2 & 3:2 film mode detection
Play video games on your HD monitor/TV
High-resolution output picture
Plug & play- no drive software required
Component resolution support 50 to 60 frame rate conversion only not 60 to 50
PC resolution frame rate only supports 60Hz output

Interfaces
Input Port	1 CV 1 1SV 1 Analog stereo(3.5mm)
Output Port	1 HDMI

Video
HDMI Compliance	HDMI 1.2 (DVI 1.0)
HDCP Compliance	N/A
Input Signal Types	CV/SV
Output Signal Type	HDMI

Resolutions
Maximum Input	CV/SV	480i@60 / 576i@50
Maximum Output	HDMI	1080P@60

Power
Power Supply	5VDC/1A (US/EU standards, CE/FCC/UL certifi ed)
Power Consumption	2.5W

Enclosure
Chassis Material	Plastic
Chassis Color	Black
Dimensions (W×H×D)	162.6 mm × 33.5 mm × 164.5 mm
Weight	100g

Ordering Information
Model No.	Product Description
CM-398H	CV/SV to HDMI Converter with Audio Input
