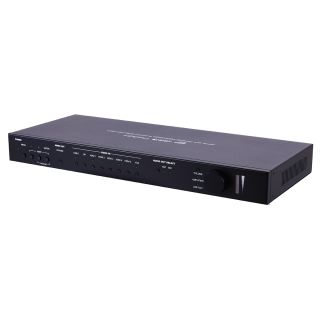

UHD+ 8x2 Multi-Format to HDMI/HDBT Switcher with Scaler - Cypress CSC-6030CVE

UHD+ 8x2 Multi-Format to HDMI/HDBT Switcher with Scaler - Cypress CSC-6030CVE

Artikelnummer: CSC-6030CVE
HAN: CSC-6030CVE
Kategorie: Scaler
Hersteller: Cypress Technology

This 8 by 2 multi-format scaling switcher provides HDMI, DisplayPort, USB-C and VGA inputs which can be freely selected for outp ...

1.385,96 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This 8 by 2 multi-format scaling switcher provides HDMI, DisplayPort, USB-C and VGA inputs which can be freely selected for output at a scaled resolution of the user’s choosing over the mirrored HDMI and HDBaseT outputs. The HDMI and USB-C ports support resolutions up to 4K@60 (4:4:4, 8-bit) while the HDBaseT output supports automatic down-conversion of 4K60(4:4:4) sources to 4K60(4:2:0). The VGA inputs support resolutions up to WUXGA. The HDBaseT output provides a great solution to extend your audio and video up to 70 meters (at 4K) over a single run of Cat.5e/6/7 cable as well as providing 48V PoH power to compatible HDBaseT Receivers.

This unit also includes multiple analog stereo audio inputs and a microphone input along with an amplified analog stereo output to provide a range of audio routing and mixing flexibility. The built-in audio mixer function allows the user to mix audio from any analog input with the microphone input for presentation or lecture usage. The ability to switch back and forth between mixed and nonmixed audio greatly simplifies the presentation experience.

A trigger input interface is also provided to allow the easy addition of a remote control keypad, or other trigger-supporting products, which can be installed within a podium or within a table in a conference room or classroom. This interface can allow the user to activate functions with the simple press of a button. Standard control is available via front panel buttons with an On-Screen Display (OSD), WebGUI, Telnet, and RS-232 making it exceptionally versatile.

8 video inputs (1xUSB-C, 1xDP, 5xHDMI, 1xVGA)
2 mirrored video outputs (1xHDMI, 1xHDBaseT)
Supports switching and scaling of all AV inputs for display over the mirrored HDMI and HDBaseT outputs
Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output
Note: The HDBaseT output will automatically down-convert 4K50/60(4:4:4) sources to 4K50/60(4:2:0) to maintain compatibility
Supports Deep Color input and output up to 12-bit (Bypass only for output)
HDBaseT output transmits video and audio over a single Cat.5e/6/7 cable up to 100m/328ft at 1080p and 70m/230ft at 4K
Audio mixer function allows the mixing of audio from any analog input with the microphone input
Trigger Control Keypad support for easy, single-button, function activation (Optional)
Supports standard PoH from the unit to connected HDBaseT Receivers (compatible Receivers only)
Comprehensive EDID and HDCP management
Controllable via front panel controls with OSD, RS-232, Telnet, WebGUI, and triggers

Interfaces
Input Port	1 USB (Type-C) 1 DisplayPort 5 HDMI (Type-A) 1 VGA (HD-15) 6 Stereo Audio (3.5mm) 1 Microphone (6.35mm)
Output Port	1 HDMI (Type-A) 1 HDBaseT (RJ-45) 1 Stereo Audio (5-pin Terminal Block) 1 Stereo Audio (2×2-pin Term. Blocks)
Pass-through Port	1 IR Extender (3.5mm) 1 IR Blaster (3.5mm) 1 RS-232 (4-pin Terminal Block) 2 Power Relay (2-pin Terminal Block)
Pass-through/Control Port	1 LAN (RJ-45)
Control I/O	1 RS-232 (4-pin Terminal Block) 1 Trigger (10-pin Terminal Block)
Service Port	1 USB 2.0 (Type-A)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.2
Input Signal Type	4K@60 8bit YUV 4:4:4, HDR10
Output Signal Types	4K@60 8bit YUV 4:4:4, HDR10

Resolutions
Maximum Input	HDMI	4096×2160p@60 2560×1600p@60RB
	VGA	1920×1200p@60RB
	USB-C	4096×2160p@60 2560×1600p@60RB
	DP	4096×2160p@60 2560×1600p@60RB
Maximum Output	HDBaseT	4096×2160p@30 2560×1600p@60RB
	HDMI	4096×2160p@60 2560×1600p@60RB

Audio
Digital Formats	HDMI	8CH LPCM, Bitstream, HD Bitstream
Analog Formats	Unbalanced 2 Channel
Line Level	Frequency Response: < ±0.5dB (20Hz to 20kHz) THD: < 0.02% (20Hz to 20kHz) S/N Ratio: > 80dB (1kHz with 0dBFS) Crosstalk: < −80dB (10kHz, Vin=0dBFS)

Power
Power Supply	24V/6.25A (Locking)
Power Consumption	143w

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	432mm×43mm×164mm [Case Only] 432mm×43mm×174mm [All Inclusive]
Weight	2,488g

Field Firmware Update
Interface	USB Field upgrade, WebGUI

Ordering Information
Model No.	Product Description
CSC-6030CVE	UHD+ 8x2 Multi-Format to HDMI/HDBT Switcher with Scaler
CH-1527RX	HDMI over HDBaseT Receiver with LAN, PoH, IR, RS-232
