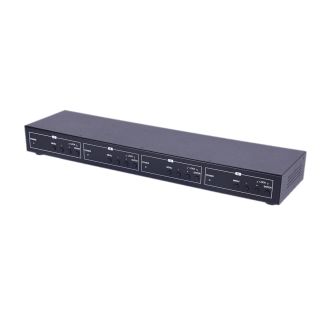

UHD+ HDMI to HDMI Scaler Quad-Set - Cypress CSC-6015

UHD+ HDMI to HDMI Scaler Quad-Set - Cypress CSC-6015

Artikelnummer: CSC-6015
HAN: CSC-6015
Kategorie: Scaler
Hersteller: Cypress Technology

This HDMI to HDMI Scaler Quad-Set is designed to convert and scale a wide range of HDMI sources for output to an equally wide ar ...

1.253,08 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This HDMI to HDMI Scaler Quad-Set is designed to convert and scale a wide range of HDMI sources for output to an equally wide array of HDMI resolutions with 4 independent scaling units in a single case. Input sources are supported at resolutions up to and including 4K@60Hz (4:4:4, 8-bit). Supported output resolutions range from SVGA to 3840×2160@60Hz (4:4:4, 8-bit). The efficient and compact design ensures that the user can set up each scaling unit quickly and get high quality pictures on each display. Additionally, this unit provides analog stereo breakout audio (LPCM 2.0 sources only) to support the use of external powered speakers. A perfect tool for your HD and UHD signal conversion needs. Each scaling unit is controlled independently via front panel buttons with an On-Screen Display (OSD).

4 independent scaling units within a single rack-mountable case
Supports HD resolutions up to 3840×2160@60 Hz (4:4:4, 8-bit) & 4096×2160@60 Hz (4:4:4, 8-bit)
Supports 16-bit Deep Color up to 1080p@60Hz
Supports 12-bit Deep Color up to 4K@60Hz (YUV 4:2:0) & 4K@30Hz(4:4:4)
Supports pass-through of LPCM 7.1, Bitstream and HD Bitstream audio formats over HDMI
Analog stereo audio breakout (LPCM 2.0 sources only)
Provides EDID management via EDID bypass, 6 built-in EDIDs or 1 user modifiable EDID
Supports up and down scaling of a wide variety of HDMI source resolutions, from 480p to 4K@60Hz.
Each scaling unit is controlled independently via front panel buttons with an On-Screen Display (OSD)

Interfaces
Input Port	4 HDMI
Output Port	4 HDMI 4×3.5mm (Stereo)
Control I/O	4 USB Type-A

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4K@60 8bit 4:4:4
Output Signal Type	4K@60 8bit 4:4:4

Resolutions

Maximum Input

HDMI

4096×2160p@60

Maximum Output

HDMI

4096×2160p@60

Power
Power Supply	5V/6A DC
Power Consumption	24.7W

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	432mm×44mm×108mm [Case Only] 432mm×44mm×116mm [All Inclusive]
Weight	1520g

Field Firmware Update
Interface	USB

Ordering Information
Model No.	Product Description
CSC-6015	UHD+ HDMI to HDMI Scaler Quad-Set
