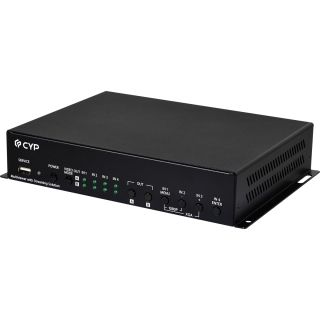

Multi-View with Streaming Solution for Video Conference - Cypress CSC-VPR-3420

Multi-View with Streaming Solution for Video Conference - Cypress CSC-VPR-3420

Artikelnummer: CSC-VPR-3420
HAN: CSC-VPR-3420
Kategorie: Scaler
Hersteller: Cypress Technology

Video conference is important and convenient to communicate with people in distance. If you want to express your thought clearly ...

1.693,95 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

Video conference is important and convenient to communicate with people in distance. If you want to express your thought clearly by sharing varied and rich images, an integrated machine with multi-view and video capture functions is a splendid idea. CSC-VPR-3420 is the one to meet your requirement. Besides high performance HDMI switch with integrated scaling, multi-windowing technology, multi-view and video capture function are also supported. Any of the 4 different HDMI sources may be displayed individually, full screen, or they can be displayed using a variety of multi-window modes including quad mode, PiP , and PoP mode.

Using an HDMI cable to connect between HDMI out indicated as capture and the HDMI input above it. The HDMI input supports resolutions up to 18Gbps (600MHz) 4K UHD with HDR (via the bypass path) while simultaneously streaming the audio and video signal at 1080p to a USB connected PC for capture or re-broadcast.

It supports most common video capture, chat, or streaming software, including free OBS (Open Broadcaster Software) streaming software which is available for Windows PC, macOS and Linux. In this product, the video capture is powered directly by the USB 3.0 port, not from the DC 24V power source. (A Y-cable is required when connected via USB 2.0 in order to deliver the necessary power). Availability and access to the controllable features of the unit depend on the capture software used.

Multi-view Switch

HDMI inputs and outputs with 18Gbps (600MHz) 4K UHD support
Seamless switching (no loss of sync to display) when switching sources in 4x2 matrix mode.
Supports the ability to store a multi-window arrangement as a preset that can be recalled later
EDID management
Supports easy adjustment of window size, position and settings in the PiP windowing mode via the WebGUI
Controllable via front panel buttons, WebGUI, Telnet and RS-232

Video Capture portion

Automatically scales 4K sources to 1080p for USB capture
Supports video timing stabilization to help ensure a reliable and stable USB capture stream
Capturing over USB 3.0 allows uncompressed video and audio data capture (1080p, LPCM 2.0)
Capturing over USB 2.0 applies minimal MJPEG compression to the video and audio data (1080p, LPCM 2.0)
Supports capturing 2 channel digital audio from either HDMI (LPCM 2.0) or the 3.5mm analog audio input (selectable via capture software)
Compliance with the UAC (USB Audio Class) and UVC (USB Video Class) standards, allows the unit to support most common capture and video streaming softwares

Interfaces
Input Port	4×HDMI (Type-A) 1×Stereo (3.5mm)
Output Port	2×HDMI (Type-A) 1×USB (Type-B)
Control I/O	1×RS-232 (3.5mm) 1×IP Control (RJ-45)
Service Port	1×USB (Type-A)

Video
HDMI Compliance	2.0 (DVI 1.0)
HDCP Compliance	2.2
Input Signal Types	4K@60 8 bit YUV 4:4:4
Output Signal Types	4K@60 8 bit YUV 4:4:4
		Resolutions
Maximum Input	HDMI	4096x2160p@60
Maximum Output	HDMI	4096x2160p@60

Audio
HDMI Input 1,2	LPCM (8 channels,192kHz) Bitstream High-Definition Bitstream
HDMI Input 3,4	LPCM (2 Channels, 48KHz)
Line In	Max Audio Level: 2Vrms Impedance: 10kΩ Type: Unbalanced

Power
Power Supply	24V/2.7A DC (Capture power from USB Type B)
Power Consumption	15.3W + 7.15W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	213.5mm×43mm×158mm [Case Only] 231.5mm×44mm×161mm [All Inclusive]
Weight	1,135g

Field Firmware Update

PC Update, WebGUI

ORDERING INFORMATION

Model No.	Product Description
CSC-VPR-3420	Multi-View with Streaming Solution for Video Conference
