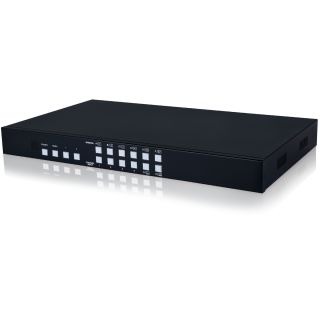

4×1 HDMI Switcher with PiP/PoP & Multi-Window Display - Cypress CDPS-41SQN

4×1 HDMI Switcher with PiP/PoP & Multi-Window Display - Cypress CDPS-41SQN

Artikelnummer: CYP-CDPS-41SQN
HAN: CDPS-41SQN
Kategorie: Scaler
Hersteller: Cypress Technology

This HDMI Switcher is a high performance, low latency, multi-windowing system that can be easily configured for a variety of pro ...

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.

Beschreibung
Frage zum Artikel

This HDMI Switcher is a high performance, low latency, multi-windowing system that can be easily configured for a variety of professional video processing tasks. Up to 4 different input sources may be freely selected and arranged and output to a single display. When switched into single window mode the unit can be a seamless switcher with cross-fade support, or two sources can be combined with the use of chroma keying. 90-degree rotation is also supported when outputting a single full screen window. Additionally, the unit supports the option of uploading a graphic logo for display over the top of the output video. Video resolutions up to 1080p60 and PC resolutions up to WUXGA are supported along with audio up to 192kHz, 7.1 channel, LPCM for both inputs and output. The unit can be controlled in a wide variety of ways, including via front panel buttons with OSD menu, WebGUI, Telnet, RS-232, and IR remote.

Seamless switching between sources and windows
Supports PiP, PoP, and multi-window display
Easy individual window size and position and layer priority adjustment
Enlarge or shrink up to 4 input windows
Crossfade, chroma key, mirror, and rotation (90˚ left/right and 180˚) functions
Supports the uploading of a user customizable graphic for display over the top of video output
8 hot keys dedicated to window and source selection, 4 customizable window layout hot keys, and 4 software-only hot keys for additional stored window layout configurations
Control via front panel with OSD menu, WebGUI, Telnet, RS-232, and IR remote

Interfaces
Input Port	4 HDMI (Type-A)
Output Port	1 HDMI
Control I/O	1 RS-232 (DE-9) 1 LAN (RJ-45)

Video
HDMI Compliance	HDMI 1.3 (DVI 1.0)
HDCP Compliance	1.4
Input Signal Type	1080p@60 12-bit YUV 4:4:4
Output Signal Types	1080p@60 12-bit YUV 4:4:4

Resolutions
Maximum Input	HDMI	1920×1200@60Hz
Maximum Output	HDMI	1920×1200@60Hz

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	436mm×44mm×246mm [Case Only] 436mm×49mm×256mm [All Inclusive]
Weight	2,200g

Power
Power Supply	12V/3A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption	18W

Field Firmware Update
Interface	N/A

Ordering Information
Model No.	Product Description
CDPS-41SQN	4×1 HDMI Switcher with PiP/PoP & Multi-Window Display
