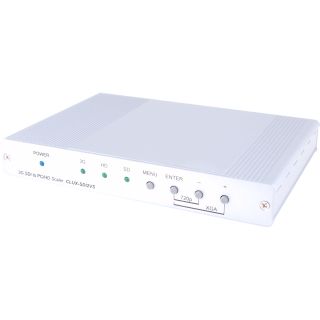

SDI to PC/HD Scaler with Audio - Cypress CLUX-SDI2VS

SDI to PC/HD Scaler with Audio - Cypress CLUX-SDI2VS

Artikelnummer: CYP-CLUX-SDI2VS
HAN: CLUX-SDI2VS
Kategorie: Scaler
Hersteller: Cypress Technology

The SDI to VGA Scaler allows SD, HD and 3G-SDI signals to be shown on PC/HD display. This means that it is now easier for profes ...

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.

Beschreibung
Frage zum Artikel

The SDI to VGA Scaler allows SD, HD and 3G-SDI signals to be shown on PC/HD display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on PC/HD display. Furthermore, thanks to coaxial (S/PDIF) and L/R audio outputs users can output audio in both digital and analog formats while the loop-through 3G-SDI design benefits users by letting them simultaneous show content on both SDI and PC/HD displays.

Supports SD-SDI, HD-SDI and 3G-SDI input signals with auto-detection
Supports PC/HD and SDI (bypass) output simultaneously
SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s
Supports SDI input/output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
Scale any SDI signal to PC/HD:

1. PC timings: VGA@60 Hz ~ WUXGA@60 Hz (RB)

2. HDTV timings: 480i/576i ~ 1080p@50/60 Hz

Supports SDI input modes:

1. SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)

2. HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s and 1.485/1.001 Gbit/s)

3. 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)

Equalized and re-clocked loop output
Alternative audio output to coaxial and analog 2CH

SMPTE Standard	425M Level A & B, 424M, 292M, 259M-C
SDI Transmission Rates	2.970 Gbps, 2.970/1.001 Gbps,1.485 Gbps, 1.485/1.001 Gbps, and 270 Mbps
Input Port	1×BNC (SD/HD/3G-SDI)
Output Port	1×BNC (SD/HD/3G-SDI bypass), 1×D-Sub 15-pin, 1×Coaxial, 2×RCA Jack
Video Output Support	PC: VGA ~ WUXGA@60RB HD: 480p~1080p
SDI Timging Support	SD-SDI: SMPTE 259M-C, at bitrates of 270 Mbit/s HD-SDI: SMPTE 292M, at bitrates of 1.485 Gbit/s and 1.485/1.001 Gbit/s 3G-SDI: SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s
Power Supply	5 V DC/ 2.6 A (US/EU standards, CE/FCC/ UL certified)
ESD Protection	Human-body Model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)
SDI Cable Distance	3G up to 100 m (BELDEN 1694A Cable) HD up to 200 m (BELDEN 1694A Cable) SD up to 300 m (BELDEN 1694A Cable)
Dimensions	180 mm (W)×142 mm (D)×25 mm (H)
Weight	435 g
Chassis Material	Aluminum
Silkscreen Color	Silver
Operating Temperature	0 ˚C~40 ˚C/32 ˚F~104 ˚F
Storage Temperature	−20 ˚C~60 ˚C/−4 ˚F~140 ˚F
Relative Humidity	20~90 % RH (Non-condensing)
Power Consumption	9.3 W
