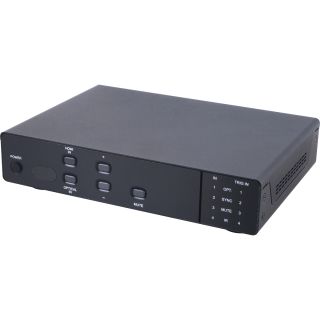

4K UHD 4×1 HDMI Switcher with Control System Center - Cypress CDPS-UH4H1HFS

4K UHD 4×1 HDMI Switcher with Control System Center - Cypress CDPS-UH4H1HFS

Artikelnummer: CDPS-UH4H1HFS
HAN: CDPS-UH4H1HFS
Kategorie: Switches
Hersteller: Cypress Technology

This 4×1 HDMI 4K UHD Switcher allows you to select between four HDMI sources and route your selection to a single HDMI display. ...

607,18 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This 4×1 HDMI 4K UHD Switcher allows you to select between four HDMI sources and route your selection to a single HDMI display. Additionally, stereo audio is extracted, output, and amplified, without the need for a dedicated amp, via speaker connections on the back of the unit making it ideal for small events or classrooms. The included control system functionality provides access not only to direct but also indirect control interfaces for all of your devices. Direct control methods such as IR, RS-232, relay and DC triggers allow users to maintain traditional styles of control over devices while indirect device control is possible using Telnet, allowing users to control newer, more complicated, devices. The operation of the system can be easily managed through the included WebGUI by connecting with your PC, laptop or even a mobile device such as a tablet.

HDMI with 3D and 4K UHD support, DVI 1.0 compatible
Supports HDCP 1.4 for all HDMI inputs and outputs
Supports resolutions up to 4K UHD: 3840×2160@24/25/30Hz & 3840×2160@50/60Hz (YUV 4:2:0), 4096×2160@24/25/30Hz & 4096×2160@50/60Hz (YUV 4:2:0)
Supports HDMI data rates from 300Mbps up to 3Gbps and “Deep Color” up to 1080p w/ 36-bit color
Supports auto source detection and switching
Amplified stereo speaker outputs support LPCM 2.0 sources from HDMI or optical
Supports simultaneous audio output over HDMI and analog stereo
Per-input HDCP support control
Supports system control with 5 IR outputs, 4 Trigger inputs, 4 Relay outputs, 2 COM ports, and 1 Ethernet port
Supports 4 trigger inputs with a voltage range of 0~3.3V
Supports COM port baud rates from 4800~115200bps
Supports RS-232, IR, Telnet, and WebGUI controls

Video Bandwidth	340 MHz/10.2 Gbps
Input Ports	4×HDMI, 1×Optical Audio, 4×Trigger (5-pin Terminal Block)
Output Ports	1×HDMI, 1×Stereo Speaker (Binding Post Pairs), 5×IR Blaster (3.5mm), 4×Relay (8-pin Terminal Block), 2×COM (3-pin Terminal Block)
Control Interfaces	1×IP Control (RJ-45), 1×RS-232 (3.5mm)
Supported Resolutions	480i@60Hz - 4K@60Hz (4:2:0, 8-bit) VGA@60Hz - WUXGA@60Hz (RB)
Cable Length	10m (1080p@60Hz, 12-bit) 5m (4K@60Hz, 4:2:0, 8-bit)
IR Frequency	30 - 50kHz (30 - 60kHz under ideal conditions)
Baud Rate	Up to 115200 ps
Power Supply	24V/3.75A DC (US/EU standards, CE/FCC/ UL certified)
ESD Protection	Human Body Model: ±12kV (Air Discharge) ±8kV (Contact Discharge)
Dimensions	219mm×43mm×156mm (W×H×D) [Case Only] 219mm×45mm×176.5mm (W×H×D) [All Inclusive]
Weight	1,272g
Chassis Material	Metal
Silkscreen Color	Black
Operating Temperature	0˚C - 40˚C/32˚F - 104˚F
