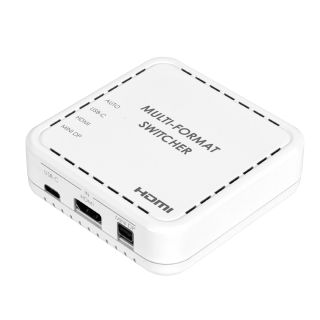

UHD+ Multi-Format to HDMI Output Switcher - Cypress CPLUS-31PS

UHD+ Multi-Format to HDMI Output Switcher - Cypress CPLUS-31PS

Artikelnummer: CPLUS-31PS
HAN: CPLUS-31PS
Kategorie: Switches
Hersteller: Cypress Technology

This 3x1 Multi-Format to HDMI Switch is a 4K@60Hz (4:4:4) switcher featuring USB Type-C, HDMI and Mini DisplayPort inputs which ...

212,95 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This 3x1 Multi-Format to HDMI Switch is a 4K@60Hz (4:4:4) switcher featuring USB Type-C, HDMI and Mini DisplayPort inputs which are automatically converted to a standard HDMI format for use with projectors or displays. This unit provides easy switching functionality with both a manual input selection button and an optional auto-sensing “last memory” feature which can automatically switch to a newly connected source or revert to the previous source, if the current one becomes disconnected, with no user intervention necessary. This switcher is an ideal addition to any conference room, lecture hall or home entertainment setup with its portable and easy to install design. This unit is controllable via a single front panel button.

EDID bypass with an optimized algorithm to ensure optimal resolution and feature support
Easy to read LEDs to indicate input selection and operational mode
Small and portable switch box design
Controllable via a single front panel button with LEDs

Interfaces
Input Port	1 USB (Type-C) 1 DP (mDP) 1 HDMI (Type-A)
Output Port	1 HDMI (Type-A)
Service Port	1 USB (Mini-B)

Video
HDMI Compliance	HDMI 2.0 (DP 1.4) (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4096x2160p@60 YUV 4:4:4
Output Signal Type	4096x2160p@60 YUV 4:4:4

Resolutions
Maximum Input	HDMI	4096×2160p@60
	MINI DP	4096×2160p@60
	USB-C	4096×2160p@60
Maximum Output	HDMI	4096×2160p@60

Audio
	Input	LPCM (8 Channels), Bitstream, HD Bitstream
	Output	LPCM (8 Channels), Bitstream, HD Bitstream

Power
Power Supply	5V/1.2A (Mini USB)
Power Consumption	4.7W

Enclosure
Chassis Material	Plastic
Chassis Color	White
Dimensions (W×H×D)	85mm×26mm×85mm [Case Only] 85mm×26mm×87mm [All Inclusive]
Weight	80g

Field Firmware Update
Interface	Mini USB

Ordering Information
Model No.	Product Description
CPLUS-31PS	UHD+ Multi-Format to HDMI Output Switcher
