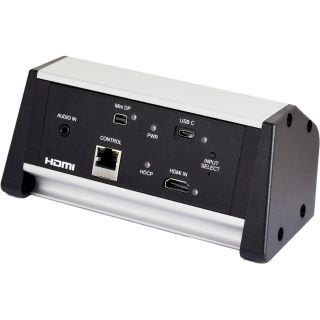

UHD+ 3x1 Multi-Format to HDMI Table Box - Cypress CPLUS-31PS-TB

Artikelnummer: CPLUS-31PS-TB

Herstellernummer: CPLUS-31PS-TB

The CPLUS-31PS-TB is a brand new AV concept for the commercial & corporate-market segments. Presentation equipment in corporate ...

Kategorie: Switches


Preis auf Anfrage
Muss bestellt werden. Ab Bestellung lieferbereit in 35 Tagen.


The CPLUS-31PS-TB is a brand new AV concept for the commercial & corporate-market segments. Presentation equipment in corporate meeting rooms can be difficult to operate and provide the user with challenges when connecting their source to the installed AV system. Flexible meeting rooms are also becoming more commonplace, which is where the CPLUS-31PS-TB provides the perfect balance between ease of use and portability. With CPLUS-31PS-TB, users have a flexible AV solution that removes the boundaries of how a meeting space can be used. This 3x1 Multi-Format to HDMI Switch supports resolutions up to 4096x2160@60Hz (4:4:4) for inputs of USB Type-C, HDMI and Mini DisplayPort and automatically converts them to a standard HDMI format for use with projectors or displays. The table box is designed to be placed on a table, or mounted to any typical table edge using a C-clamp
  • HDMI with 3D & 4K support
  • Automatic scaling of sources to match the native resolution of the HDMI display based on EDID
  • HDMI output transmits video, audio and data over a single HDMI cable and can reach distances up to 5m at 4K when using HDMI
  • Automatic input selection with hot plug detection enabling hands-free operation
  • Front panel LEDs indicate input selection, power and link status
Interfaces
Input Port
  • 1 HDMI (Type-A)
  • 1 DisplayPort (mDP)
  • 1 USB (Type-C)
  • 1 Stereo Audio (3.5mm)
Output Port
  • 1 HDMI (Type A)
Control I/O
  • 1 LAN (RJ-45)
Video
HDMI Compliance
  • HDMI 2.0
HDCP Compliance
  • 2.X
Input Signal Types
  • 4096x2160p@60 YUV 4:4:4
Output Signal Type
  • 4096x2160p@60 YUV 4:4:4
Resolutions
Maximum InputHDMI
  • 4096×2160p@60
 Mini-DP USB
  • 4096×2160p@60
 USB (Type C)
  • 4096×2160p@60
 Maximum OutputHDMI
  • 4096x2160p@60
Audio
 HDMI
  • LPCM (8 Channels), Bitstream,
    High Bit Rate Bitstream
Enclosure
Chassis Material
  • Metal (Aluminum) & Plastic
Chassis Color
  • Black/Silver
Dimensions (W×H×D)
  • 125mm× 55mm× 37mm [Case Only]
  • 170mm× 77mm× 75mm [All Inclusive]
Weight
  • TBD
Field Firmware Update
Interface
  • PC Update, WebGUI
Ordering Information
Model No.Product Description
CPLUS-31PS-TB
  • UHD+ 3x1 Multi-Format to HDMI Table Box
