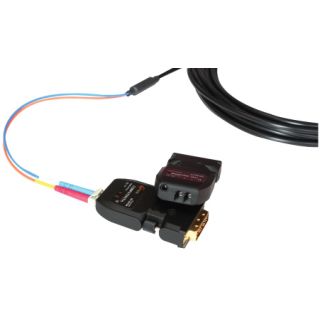

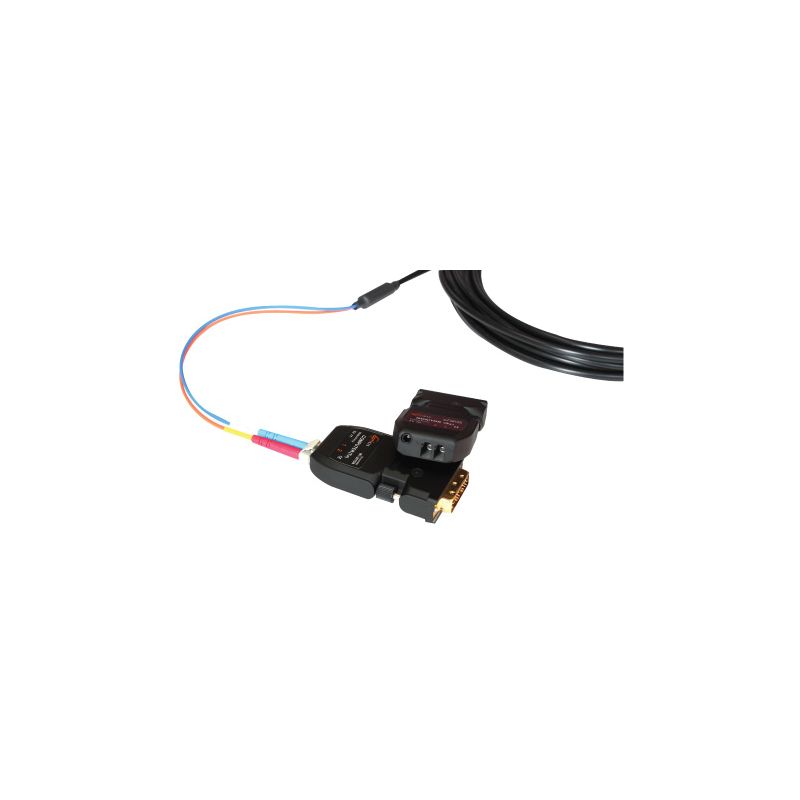

Opticis M1-201DA-RX - Two (2) fiber Detachable DVI Module Empfänger

Artikelnummer: M1-201DA-RX

Herstellernummer: M1-201DA-RX

The detachable DVI extender, M1-201DA-TR offers easy connection to your existing system with minimum efforts and no modification, since it is designed compactly enough and with all industry standard connectors. The metallic die-casting enclosure gives reliable installation, excellent EMI shields and heat dissipation in harsh and noisy environments.

Kategorie: DVI


300,00 €

exkl. 19% USt. ,(Standard)

Muss bestellt werden. Ab Bestellung lieferbereit in 7 Tagen.

Lieferzeit: 8 - 10 Werktage

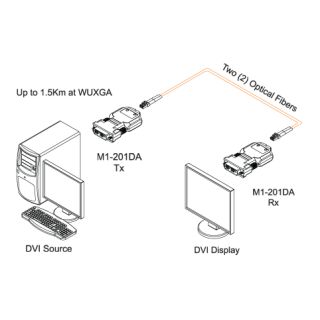

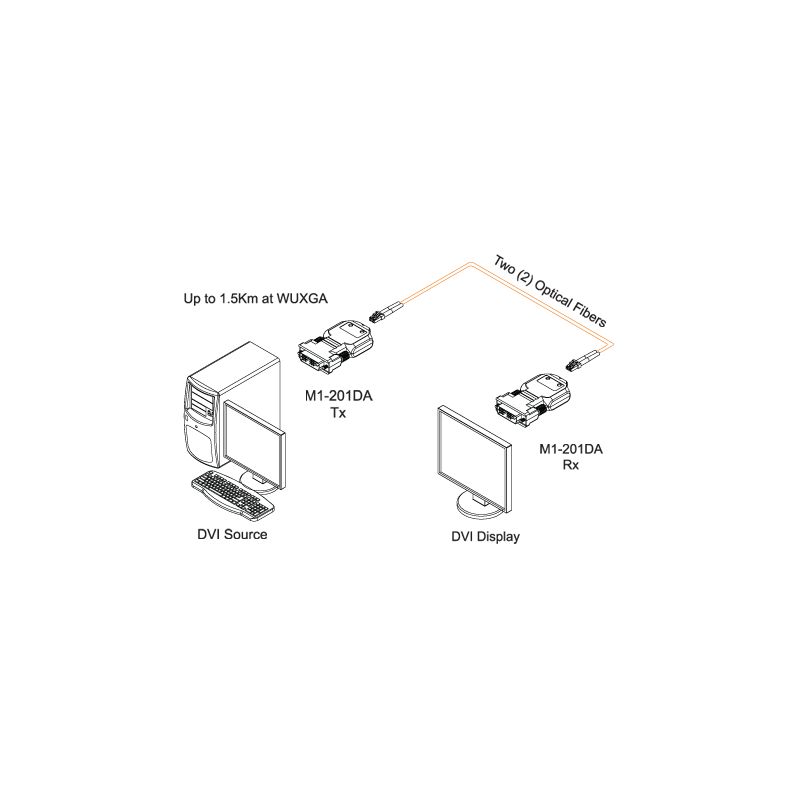

M1-201DA-TR is capable of driving uncompressed WUXGA (1920x1200) 60Hz DVI signal up to 1,500m (4920feet) over a duplex LC single-mode or 500m (1640feet) over a duplex LC multi-mode fiber. The key features of M1-201DA-TR is, by using an optical passive splitter (OPS-216L), one (1) signal from transmitter can be copied up to 16 times and it gives you a cost effective and space saving installation for various application.

For better installation flexibility, it features patent pending Self-EDID management, reading and restoring by just plugging to the display. It is also certified with IEC/EN 60601-1-2, FCC/CE and Class 1 LASER Eye Safety for various applications.

?   Small and solid aluminium enclosure
?   Easy and simple installation
?   Copies one (1) signal up to 16 times with optical passive splitter (Securing the distance without any signal loss)
?   Reads and restores the targeted EDID in the transmitter (Self-EDID)
?   Provides Power, Status (Signal transmission in transmitter and signal detection in receiver) LED indicators
?   Auto-power switching
?   Supports up to WUXGA (1920x1200), 60Hz
?   Supports bit rate up to 1.65Gbps/ch
?   Uncompressed DVI signal up to 1,500m (4,920feet) over a duplex single-mode fiber or 500m (1,640feet) over a duplex multi-mode fiber with LC terminated connector
?   Operating temperature: 0 ~ 50?
?   Storage temperature: -30 ~ 70?
?   Input power: +5V 1A
?   Size (WDH): 39 x 69 x 15mm

Spannungsversorgung: 5 V DC 230 V AC
HDCP: nicht HDCP konform
Signalausgänge: DVI-D (Single-Link)
Auflösung (maximal/nativ): 2MP Full HD (1.920 x 1.080)
Signaleingänge: DVI-D (Single-Link)
Übertragungsprotokoll: Proprietär
Service: 1 Jahr Bring-In-Service
(Maximale) Kabellänge: 500 m
