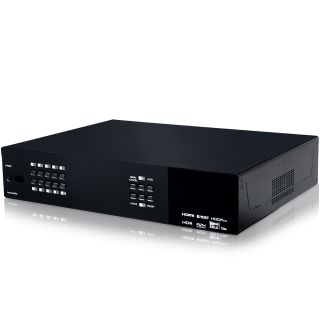

UHD + 10×10 HDMI/HDBaseT Matrix with AVLC & Audio Matrixing - Cypress CPLUS-1082VA

Artikelnummer: CPLUS-1082VA

Herstellernummer: CPLUS-1082VA

As many as ten UHD sources may be routed to any of eight HDBaseT outputs (up to 100m at 1080p or up to 70m at 4K) or two HDMI ou ...

Kategorie: Matrices

9.536,00 €

exkl. 19% USt. ,(Standard)

Muss bestellt werden. Ab Bestellung lieferbereit in 35 Tagen.

Lieferzeit: 36 - 38 Werktage

Stk

As many as ten UHD sources may be routed to any of eight HDBaseT outputs (up to 100m at 1080p or up to 70m at 4K) or two HDMI outputs at resolutions up to 4K@60Hz (8-bit, Despite HDBaseT?s 10.2Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be processed and extended by the use of AVLC (Adaptive Visually Lossless Compression) when needed. The HDMI outputs can also be set to mirror any of the HDBaseT outputs for local monitoring.

  • Routes ten HDMI sources to ten displays using eight HDBaseT outputs and two independent or mirrored HDMI outputs
  • Supports Deep Color input and output up to 12-bit
  • Supports 10-bit and 12-bit HDR bypass
  • Supported HDBaseT feature set: HD Video & Audio, 100BaseT Ethernet, 48V PoH, and Control (Bidirectional IR/RS-232 pass through)
  • All HDBaseT outputs support OAR (Optical Audio Return)
  • 4K signals can be transmitted up to 70m via Cat.5e/6 and up to 100m via Cat.6a/7
  • Supports pass-through of these standard digital audio formats via HDMI/HDBaseT: LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
  • Advanced DAC (Digital to Analog Conversion) and ADC (Analog to Digital Conversion) for audio integration
  • Supports integrated audio over CAT inputs and outputs for transmission up to 300m
  • Supports volume, treble, bass, and audio delay for lip-sync (up to 230ms) on analog audio outputs and mute on all outputs
  • Audio mixer functionality (three mixers in total)
  • Advanced internal and external EDID management with 4 sets of configurable EDID settings
  • Internal test pattern generation (up to 1080p) for self and sink testing
  • 2U rack mounted design
  • Control via front panel buttons with OLED menu, Ethernet (Telnet & WebGUI), RS-232, and IR remote
Interfaces
Input Port
  • 10 HDMI
  • 2 Digital S/PDIF (TOSLINK)
  • 2 Digital S/PDIF (RCA)
  • 4 Analog Stereo (3.5mm)
Output Port
  • 2 HDMI
  • 8 HDBaseT (RJ-45)
  • 12 Analog Stereo (24 RCA)
Bi-directional Port
  • 2 Digital S/PDIF or Analog Stereo (RJ-45)
Pass-through Port
  • 11 IR Blaster (3.5mm)
  • 9 IR Extender (3.5mm)
Control I/O
  • 1 LAN (RJ 45)
Service Port
  • 1 USB (Type-A)



Video
HDMI Compliance
  • HDMI 2.0 (DVI 1.0)

HDCP Compliance
  • 2.2

Input Signal Types
  • 4K@60 8-bit YUV 4:4:4, HDR10

Output Signal Type
  • 4K@60 8-bit YUV 4:4:4, HDR10




Resolutions
Maximum InputHDMI
  • 4096x2160p@60 YUV 4:4:4
 DP
  • 4096x2160p@60 YUV 4:4:4
Maximum Output HDMI
  • 4096x2160p@60 YUV 4:4:4
 HDMI
  • 4096x2160p@60 YUV 4:4:4



Audio
HDMI
  • LPCM 8 Channels, Bitstream, HD Bitsream
S/PDIF
  • LPCM 2 Channels
Line Level
  • Frequency Response: <±0.5dB (20Hz to 20kHz)
  • THD: < 0.01% (20Hz to 20kHz)
  • S/N Ratio: > 90dB (1kHz with 0dBFS)
  • Crosstalk: < ?90dB (10kHz, Vin=0dBFS)



Communications

Ethernet
  • 10/100Mbps
infrared
  • 2-way device control
Serial
  • 1-way device control
USB
  • Firmware update



Enclosure
Chassis Material
  • Metal (Steel)
Chassis Color
  • Black
Dimensions (W×H×D)
  • 438mm×88mm×316mm [Case Only]
  • 483mm×96mm×356mm [All Inclusive]
Weight
  • 6,500g
Rackmount Size
  • 2U



Power
Power Supply
  • 24V/6.25A DC
Power Consumption
  • 236W



Field Firmware Update USB Flash Drive, USB to PC, RS-232, WebGUI



Ordering Information
Model No.Product Description
CPLUS-1082VA
  • UHD+ 10×10 HDMI/HDBaseT Matrix with AVLC & Audio Matrixing
CH-1529RXV
  • HDMI over HDBaseT Receiver with LAN, PoH, IR, RS-232
