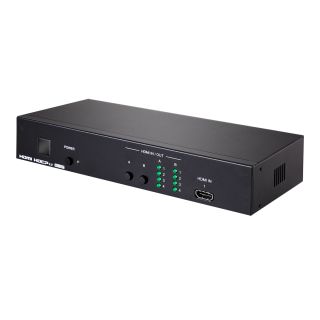

This 4×2 HDMI Matrix allows the customer to route up to four 18Gbps
HDMI input signals to any of two 18Gbps HDMI outputs. This unit
supports 4K@60Hz (4:4:4), 16-bit Deep Color, HDR (High Dynamic
Range), HD audio formats and other features defined by the HDMI 2.0
specification. Five pre-defined internal EDIDs and two external EDID
options are available for EDID management. The unit provides intuitive
front panel controls as well as RS-232, Telnet, WebGUI and IR remote
control options.
- Supports the matrix routing of four 18Gbps HDMI inputs to two 18Gbps
HDMI outputs
- Maximum data rate up to 18Gbps with Deep Color support up to 16-bit
at 1080p
- Supports pass-through of LPCM 7.1, Bitstream and HD Bitstream audio
formats
- Supports EDID management via five pre-defined internal EDIDs and two
external EDID options
- Multiple control interfaces including RS-232, Telnet, WebGUI and IR
remote
| Interfaces | |
|---|
| Input Port | |
| Output Port | |
| Control I/O | - 1×IR Extender (3.5mm)
- 1×RS-232 (9-pin D-sub)
- 1×IP Control (RJ45)
|
| Video | |
|---|
| HDMI Compliance | |
| HDCP Compliance | |
| Input Signal Types | - 4096x2160p@60 8-bit YUV 4:4:4
|
| Output Signal Type | - 4096x2160p@60 8-bit YUV 4:4:4
|
| Resolutions | | |
|---|
| Maximum Input | HDMI | |
| Maximum Output | HDMI | |
| Power | |
|---|
| Power Supply | - 5V/2.6A DC (US/EU standards, CE/FCC/UL certified)
|
| Power Consumption | |
| Enclosure | |
|---|
| Chassis Material | |
| Chassis Color | |
| Dimensions (W×H×D) | - 240mm×43mm×104mm [Case Only]
- 240mm×48mm×112.2mm [All Inclusive]
|
| Weight | |
| Field Firmware Update | |
|---|
| Interface | |
| Ordering Information | |
|---|
| Model No. | Product Description |
| CPLUS-V4H2HP | |
