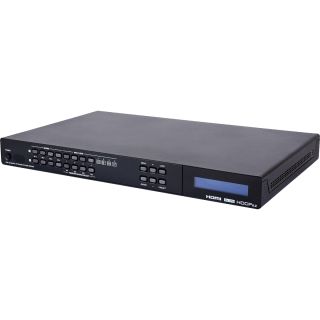

This 4 by 2 Multiviewer is a high performance HDMI switch with integratedscaling and multi-windowing technology. It is an ideal solution for monitoringor displaying multiple sources simultaneously for use in control rooms,conference rooms or classrooms. Video resolutions up to 4K@60Hz and LPCMaudio up to 7.1 channels at 192kHz are supported on both input and outputand this unit is fully compatible with the HDCP 1.x and 2.2 standards.
Any of 4 different HDMI sources may be displayed individually, full screen,or they can be displayed using a variety of multi-window modes includingquad view and PiP with the output being sent to 2 mirrored HDMI outputs(4K@50/60Hz output supports quad view and full screen only). Managementof input/window routing, position and sizing can be controlled easily by use ofthe front panel controls as well as by WebGUI, RS-232, Telnet, and IR remotecontrol options.
- 4 HDMI inputs and 2 mirrored HDMI outputs
- Seamless switching (no loss of sync to display) when switching sources in both full screen and multi-window modes
- Supports PiP (Picture-in-Picture), side by side, 3+1 quad view, and 2×2 quad view display options with independent audio source selection Note: 4K@50/60Hz output supports 2×2 Quad View only and is limited to 1080p/4K sources.
- Supports the ability to store a multi-window arrangement as a preset that can be recalled later
- Each window can have a border with a selectable color
- Uploadable and freely positioned graphic logo support Note: The logo and border features are not available when the output is set to 4K@50/60Hz.
- Supports easy adjustment of window size, position and settings in the PiP windowing mode via the WebGUI
- Matrix mode supports input and output resolutions up to 1080p@60Hz with a single shared audio source (Outputs are mirrored at higher resolutions)
- Controllable via front panel buttons, WebGUI, Telnet, RS-232, and IR remote
| Interfaces | |
|---|---|
| Input Port |
|
| Output Port |
|
| Control I/O |
|
| Video | |||
|---|---|---|---|
| HDMI Compliance |
| ||
| HDCP Compliance |
| ||
| Input Signal Type |
| ||
| Output Signal Types |
| ||
| Resolutions | |||
|---|---|---|---|
| Maximum Input | HDMI |
| |
| Maximum Output | HDMI |
| |
| Audio | ||
|---|---|---|
| HDMI |
| |
| Balanced Out |
| |
| Enclosure | |
|---|---|
| Chassis Material |
|
| Chassis Color |
|
| Dimensions (W×H×D) |
|
| Weight |
|
| Power | |
|---|---|
| Power Supply |
|
| Power Consumption |
|
| Field Firmware Update |
|
|---|---|
| Interface |
|
| Ordering Information | |
|---|---|
| Model No. | Product Description |
| CDPS-14TW |
|
