This HDMI 4K UHD Scaler with Test Patterns and Signal Event Automation
is designed to upscale 1080p signals into 4K UHD (18Gbps) or downscale
4K UHD (18Gbps) signals into 1080p with synchronized digital audio
output. A friendly and simple interface design allows the user to control
the unit while viewing the OSD directly on the HDMI outputs. The
input signal can be output to both HDMI outputs simultaneously with a
different resolution on each or the unit can generate a test pattern at a
preferred video resolution for easy on-site display testing and validation.
Additional functionality such as EDID and HDCP management, and basic signal
event automation (via RS-232 or CEC) is also provided. This UHD Scaler is
the best tool to use with your HD and UHD signals. This unit can be controlled
easily by use of the front panel controls (with OSD) or by RS-232.
- HDMI signal bypass on both outputs or upscales 1080p signals to 4K on
output B and downscales 4K signals to 1080p on output A
- Supports 4K HDR at 24/30Hz (YUV 4:4:4) and 50/60Hz (YUV 4:2:0) with
up to 12- bit color
- Supports 16-bit Deep Color up to 1080p@60Hz
- Supports pass-through of many audio formats including LPCM
2.0/5.1/7.1, Bitstream, and HD Bitstream
- Integrated EDID and HDCP management
- Basic signal event automation (via RS-232 or CEC)
- Test pattern generation at selected resolutions for on-site display testing
- Controllable via front panel with OSD menu, and RS-232
Interfaces | |
---|
Input Port | |
Output Port | |
Control I/O | - 2×RS-232 (3-pin Terminal Blocks)
|
Video | |
---|
HDMI Compliance | |
HDCP Compliance | |
Input Signal Types | |
Output Signal Type | |
Resolutions | | |
---|
Maximum Input | HDMI | |
Maximum Output | HDMI | |
Power | |
---|
Power Supply | - 5V/2.6A DC (US/EU standards, CE/FCC/UL certified)
|
Power Consumption | |
Enclosure | |
---|
Chassis Material | |
Chassis Color | |
Dimensions (W×H×D) | - 128mm×25mm×75mm [Case Only]
- 125mm×25mm×83mm [All Inclusive]
|
Weight | |
Field Firmware Update | |
---|
Interface | USB |
Ordering Information | |
---|
Model No. | Product Description |

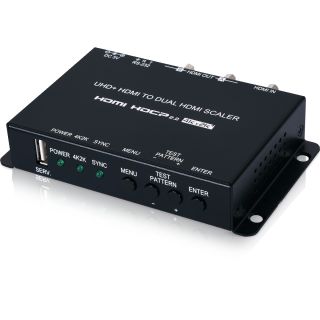

CPLUS-V2PEL | - UHD+ HDMI to Dual HDMI Scaler
|
