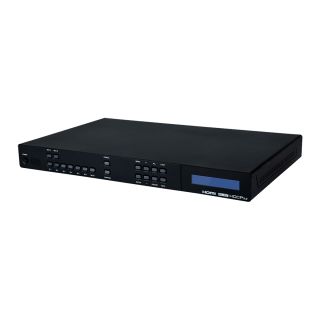

This 4K UHD+
6 by 2 Matrix provides the ability to connect up to six
4K UHD HDMI sources to up to two 4K UHD HDMI displays and freely
switch between them. This unit comes with full support for 18Gbps
(600Mhz) resolutions up to, and including 4K@60Hz (4:4:4, 8-bit) as
well as support for 16-bit Deep Color (up to 1080p@60Hz), HDR (High
Dynamic Range), HD audio and other features defined by the HDMI
2.0 specification. With a comprehensive EDID management feature
that includes the ability to select between six built in default EDIDs, or
an EDID copied from a connected sink device, this matrix can solve many
interconnectivity problems. Added flexibility comes from the ability to extract
audio from each HDMI output?s source and output it as optical digital audio
(LPCM 2.0 and standard Bitstream only). Six fully configurable presets are also
provided to simplify the routing process. This unit provides an intuitive set of
front panel controls with associated LCD, as well as RS-232, Telnet, WebGUI,
and IR remote control options.
- HDMI input and output with 18Gbps (600MHz) 4K UHD support
- Supports 16-bit Deep Color up to 1080p@60Hz
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1,
Bitstream, and HD Bitstream
- Display any of 6 high-definition sources on up to 2 HDTV displays
simultaneously
- Optical audio extraction paired with each HDMI output (LPCM 2.0 or
Bitstream only)
- Supports 6 internal EDIDs or 2 external EDIDs copied from connected
devices
- Controllable via front panel buttons with LCD, WebGUI, Telnet, RS-232,
and IR remote
Interfaces | |
---|
Input Port | |
Output Port | - 2 HDMI
- 2 TOSLINK (S/PDIF Audio)
|
Control I/O | - 1 IR Extender (3.5mm)
- 1 RS-232 (9-pin D-sub)
- 1 IP Control (RJ45)
|
Video | |
---|
HDMI Compliance | |
HDCP Compliance | |
Input Signal Types | - 3840x2160p@60 8-bit YUV 4:4:4
|
Output Signal Type | - 3840x2160p@60 8-bit YUV 4:4:4
|
Resolutions | | |
---|
Maximum Input | HDMI | |
Maximum Output | HDMI | |
Power | |
---|
Power Supply | |
Power Consumption | |
Enclosure | |
---|
Chassis Material | |
Chassis Color | |
Dimensions (W×H×D) | - 438mm×44mm×269mm [Case Only]
- 482mm×52mm×276mm [All Inclusive]
|
Weight | |
Field Firmware Update | |
---|
Interface | |
Ordering Information | |
---|
Model No. | Product Description |
CPLUS-V6H2HP | - UHD+ 6×2 HDMI Matrix with Audio De-Embedding
|
