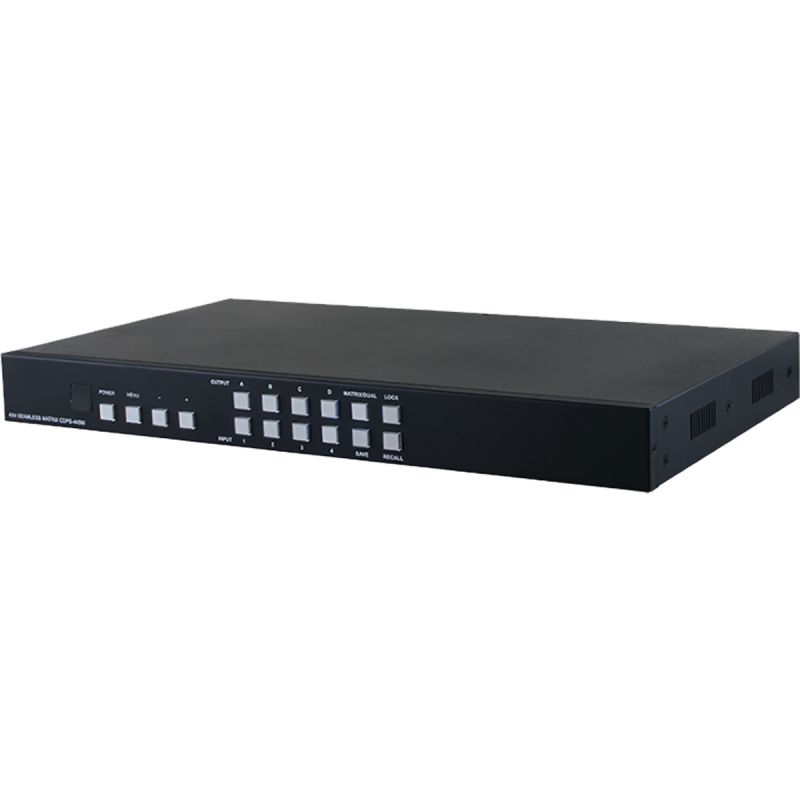

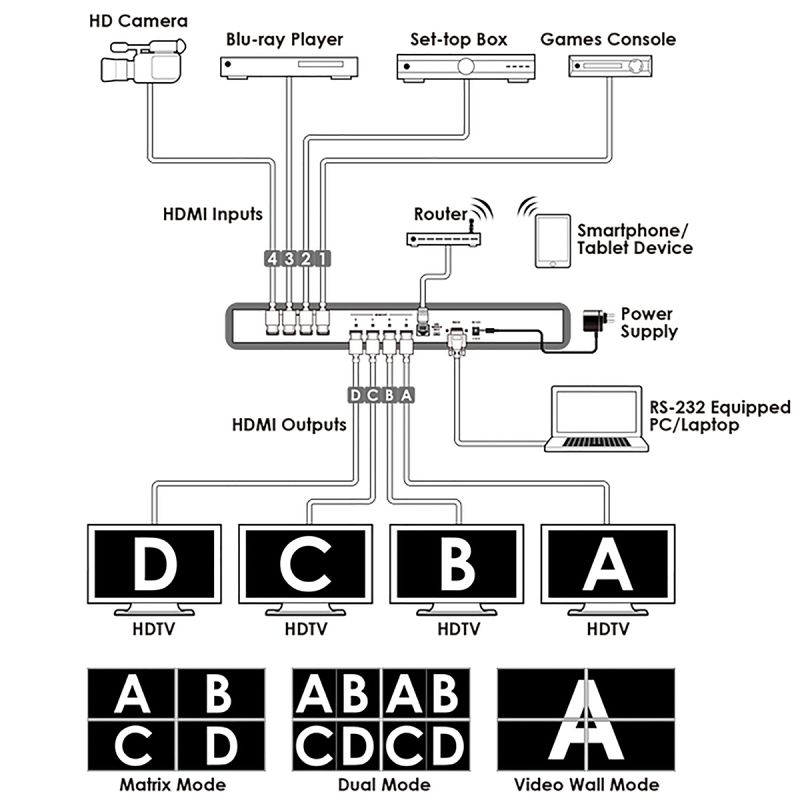

The 4 by 4 HDMI Seamless Matrix Switcher allows the signal from 4 differentinput sources to be freely selected and arranged on 4 displays (TV or monitor),providing four output modes (Matrix, Dual PoP/ PiP, Quad and TV Wall) forvarious applications. Matrix mode routes the source signals to output displaysas regular matrix does, Dual mode allows 2 sets of 2 selected sources to showon designate output displays with PoP and PiP method and TV Wall modeextends a selected source to display on all 4 output displays as one. The devicesupports video timings up to WUXGA@60RB and 1080p@60Hz, audio formatup to 7.1CH LPCM at 192kHz sampling rate based on input source EDID. For allthe opera-tion/control can be done through IR, remote control, Telnet, WebGUI,RS-232 or front panel buttons.
- Seamless switching
- Supports four different modes: Matrix mode/ Dual mode/ Quad / TV Wall
mode
--Matrix mode: Seamless switching 4 x 4.
--Dual mode: 2 sources PiP or PoP on both outputs
--Quad mode: all sources in quad view on one display
--TV Wall mode: Can output any source to 4 displays (2 by 2 Video wall)
with adjustable Bezel Correction

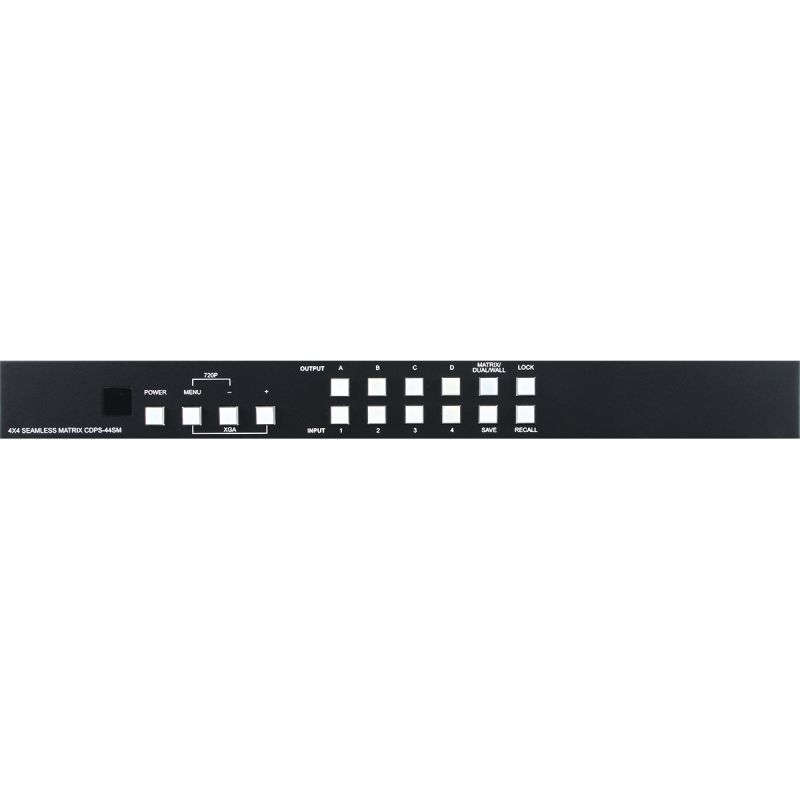

- Supports OSD, RS232, Telnet, WebGUI, Remote control and on-panel
controls
- Input resolutions support VGA~WUXGA and 480i~1080p
- Output resolutions support 480p~1080p
- Supports different input resolution and output resolution selectable
from OSD menu. The factory default value for the output resolution is
720p@60Hz/ 2CH LPCM
- Audio supports LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/ Dolby
TruHD & DTS-HD

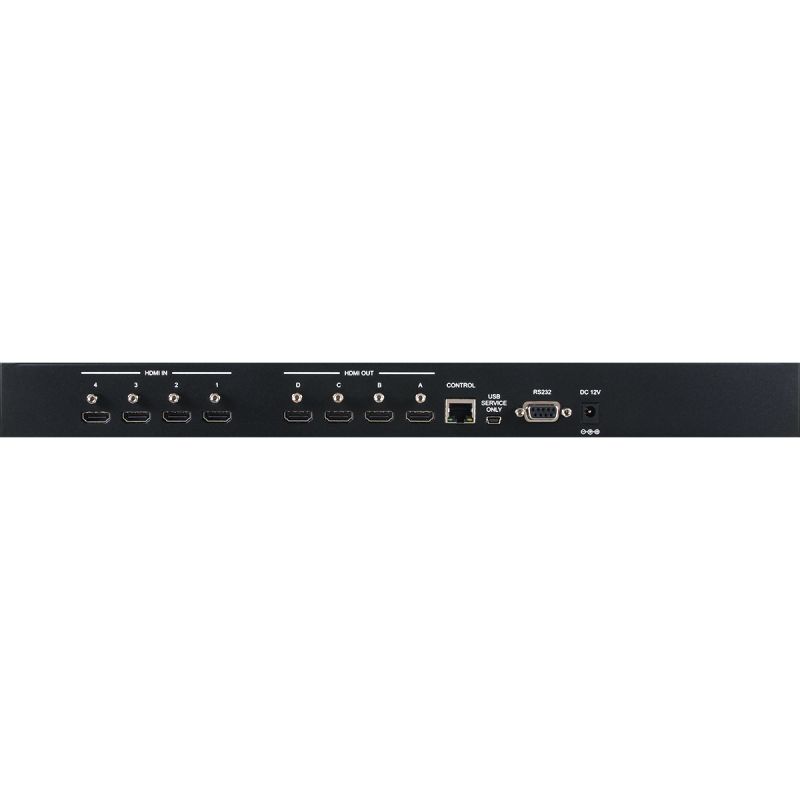

| Interfaces | |
|---|
| Input Port | -
4 HDMI (Female type)
- 1 USB (Service only)
|
| Output Port | |
| Video | |
|---|
| HDMI Compliance | |
| HDCP Compliance | |
| Input Signal Type | |
| Output Signal Types | |
| Resolutions | |
|---|
| Maximum Input | HDMI | -
1920×1080p@60
- 1920×1200p@60RB
|
| Maximum Output | HDMI | -
1920×1080p@60
- 1920×1200p@60RB
|
| Enclosure | |
|---|
| Chassis Material | |
| Chassis Color | |
| Dimensions (W×H×D) | |
| Weight | |
| Power | |
|---|
| Power Supply | - 12V/3A DC (US/EU standards, CE/FCC/UL certified)
|
| Power Consumption | |
| Field Firmware Update | |
|---|
| Interface | |
| Ordering Information | |
|---|
| Model No. | Product Description |
CDPS-44SM
| - HDMI 4x4 Seamless Matrix Switcher
|
