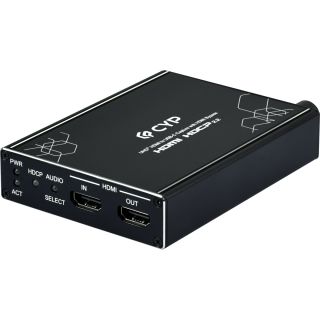

UHD+ HDMI to USB-C Capture with HDMI Bypass - Cypress CUSB-V606H

UHD+ HDMI to USB-C Capture with HDMI Bypass - Cypress CUSB-V606H

Artikelnummer: CUSB-V606H
HAN: CUSB-V606H
Kategorie: Capture
Hersteller: Cypress Technology

This HDMI to USB video capture recorder with HDMI bypass can support resolutions up to 18Gbps (600MHz) 4K UHD with HDR (via the ...

241,99 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This HDMI to USB video capture recorder with HDMI bypass can support resolutions up to 18Gbps (600MHz) 4K UHD with HDR (via the bypass path) while simultaneously streaming the audio and video signal at 4K@60 to a USB connected PC for capture or re-broadcast. With audio mixer to provide HDMI and audio input mixing, with configuration software design, making the device more handy on using experience. The use of a special video timing stabilization feature helps to ensure that the USB capture stream won’t lock up or drop, even if the HDMI input source is intermittent or becomes disconnected. USB capture is accomplished using the UAC (USB Audio Class) and UVC (USB Video Class) standards, allowing the unit to support most common video capture, chat, or streaming software, including support for the Free OBS (Open Broadcaster Software) streaming software which is available for Windows PC, macOS and Linux. The unit is powered directly by the USB 3.0 port so an external power supply is not required (A Y-cable is required when connected via USB 2.0 in order to deliver the necessary power). Availability and access to the controllable features of the unit depend on the capture software used.

HDMI IN and HDMI OUT support resolution up to 4K2K@60.
HDMI IN /Output HDCP support v1.4 and v2.2
Audio IN support LINE IN and MIC IN.
Unit may be powered directly via USB 3.0.
Supports video timing stabilization to help ensure a reliable and stable USB capture stream.
Capturing over USB 3.0 allows uncompressed video and audio data capture (up to 4K2K@30, LPCM 2.0).
Compliance with the UAC (USB Audio Class) and UVC (USB Video Class) standards, allows the unit to support most common capture and video streaming software
Note: Availability and access to the controllable features of the unit depend on the capture software used.
Support for the Free OBS (Open Broadcaster Software) streaming software which is available for Windows PC, macOS and Linux

Interfaces
Input Port	1 HDMI (Type A) 2 Analog(3.5mm)
Output Port	1 HDMI (Type A) 1 USB 3.0(Type B)
Bi-directional Port
Control I/O

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.2 bypass
Input Signal Types	44K@60 8bit YUV 4:4:4
Output Signal Type	4K@30 8bit YUV 4:4:4

Audio
HDMI	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
Line In	1 Vrms S/N Ratio: > 80dB (1kHz with 0dBFS)

Power
Power Supply	USB powered
Power Consumption	4.1283W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	84mm×23mm×113mm [Case Only] 84mm×23mm×128mm [All Inclusive]
Weight	307g

Field Firmware Update
Interface	PC

Ordering Information
Model No.	Product Description
CUSB-V606H	UHD+ HDMI to USB-C Capture with HDMI Bypass
