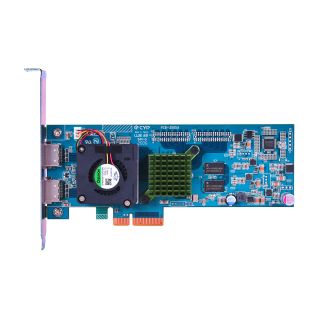

Live broadcasting is currently a very popular industry. How can you make your live broadcast picture richer and more varied? A convenient and fast way is to make your video source easily connect with broadcasting software. CPCI-V1000 is the one to make it easy for you to add UHD video with OBS. This UHD HDMI to PCIe Capture Card with HDMI bypass can support resolutions up to 4K@60 4:4:4 with HDR(via the bypass path) while simultaneously streaming the audio and video signal at 4K@30 4:4:4 to PC for capture or re-broadcast. HDMI sources up to 4K@30 4:4:4 are supported for capture without modification. Digital stereo audio from either HDMI (LPCM 2.0) or the 3.5mm analog audio input will be captured with the HDMI video source and is selectable within the configuration software. Support for the Free OBS (Open Broadcaster Software) streaming software which is available for Windows PC.
- HDMI to PCIE 2.0 x4 Video Capture
- Maximum capturing and recording up to 4K@30 4:4:4
- Support for Free OBS (Open Broadcaster Software) streaming software
- Supports YUY2, UYVY, RGB565, RGB888
Interfaces | |
Input Port | 1 HDMI |
Output Port | 1 HDMI |
Control I/O | 1 PCIe Gen2.0X4 |
Video | |||
HDMI Compliance | HDMI 2.0 (DVI 1.0) | ||
HDCP Compliance | 2.2(LOCAL OUT) | ||
Input Signal Types | 4K@60 8bit YUV 4:4:4 | ||
Output Signal Types | 4K@30 8bit YUV 4:4:4 | ||
Resolutions | |||
Maximum Input | HDMI | 4096×2160p@60 YUV 4:4:4 | |
Maximum Output | HDMI | 4096×2160p@60 YUV 4:4:4 | |
PCIe | 4096×2160p@30 YUV 4:4:4 | ||
Audio | |
HDMI | HDMI 2.0 (DVI 1.0) |
PCIe | LPCM (2 Channels) |
Power | |
Power Supply | 12V/A DC |
Power Consumption | TBD |
Enclosure | |
Chassis Material | Metal |
Chassis Color | Black |
Dimensions (W×H×D) | 172mm×120mm×18mm |
Weight | 109g |
Field Firmware Update |
PC |
ORDERING INFORMATION | |
Model No. | Product Description |
CPCI-V1000 | UHD HDMI to PCIe Capture Card with HDMI bypass |
