This HDMI to USB video capture recorder with HDMI bypass can support
resolutions up to 18Gbps (600MHz) 4K UHD with HDR (via the bypass path)
while simultaneously streaming the audio and video signal at 1080p to a USB
connected PC for capture or re-broadcast. Also with add up input special video
timing stabilization feature helps to ensure that the USB capture stream won?t
lock up or drop, even if the HDMI input source is intermittent or disconnected.
This makes your live streaming stable and non-stop.
USB capture is accomplished using the UAC (USB Audio Class) and UVC (USB
Video Class) standards, allowing the unit to support most common video
capture, chat, or streaming software, including Free OBS (Open Broadcaster
Software) streaming software which is available for Windows PC, macOS
and Linux. The unit is powered directly by the USB 3.0 port so an external
power supply is not required (A Y-cable is required when connected via USB
2.0 in order to deliver the necessary power). Availability and access to the
controllable features of the unit depend on the capture software used.
- 2 inputs(input 1 resolution up to 4K@60, input 2 up to 1080p@60), 1
bypass output (Follow source up to 4K@60)
- USB3.0 (Type-B to Type-A) connected to PC for data transmission.
- 3.5mm phone jack as Input of speaker.
- Mode select button is designed for changing the layout of video sources,
which allow user to define on tool.
- Audio auto switch for priorities audio insertion or default priority.
- Audio Mixer for provide flexible audio feature for mixing analog mic in with
HDMI input audio.
- PC software available for detail control and setting.
| Interfaces |
|---|
| Input Port | - 2 HDMI (Type A)
- 1 Analog(3.5mm)
|
| Output Port | - 1 HDMI (Type A)
- 1 USB 3.0(Type B)
|
| Bi-directional Port | |
| Control I/O | |
| Video |
|---|
| HDMI Compliance | |
| HDCP Compliance | |
| Input Signal Types | |
| Output Signal Type | - 4K@60 8bit YUV 4:4:4(HDMI)
1080p@60(USB capture)
|
| Resolutions |
|---|
| Maximum Input | HDMI | |
| Maximum Output | HDMI | |
| Audio |
|---|
| HDMI | - LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
|
| Line In | - 1 Vrms
S/N Ratio: > 80dB (1kHz with 0dBFS)
|
| Power |
|---|
| Power Supply | |
| Power Consumption | |
| Enclosure |
|---|
| Chassis Material | |
| Chassis Color | |
| Dimensions (W×H×D) | - 180mm×25mm×108mm [Case Only]
- 180mm×25mm×111.6mm [All Inclusive]
|
| Weight | |
| Field Firmware Update |
|---|
| Interface | |
| Ordering Information |
|---|
| Model No. | Product Description |

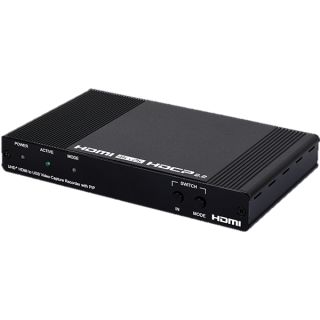

| CUSB-V605H | - UHD+ HDMI to USB Video Capture with PIP
|
