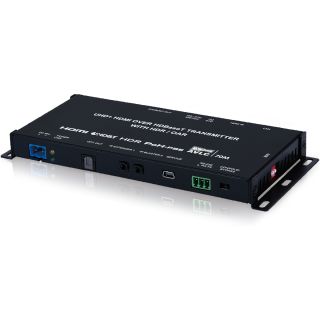

UHD+ HDMI over HDBaseT Transmitter with HDR / OAR (4K@60 444 up to 70M) - Cypress CH-1529TXV

UHD+ HDMI over HDBaseT Transmitter with HDR / OAR (4K@60 444 up to 70M) - Cypress CH-1529TXV

Artikelnummer: CH-1529TXV
HAN: CH-1529TXV
Kategorie: Extenders
Hersteller: Cypress Technology

This HDMI over single Cat.5e/6/7 Transmitter is a great solution for extending HD audio and video as well as Ethernet and contro ...

511,26 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This HDMI over single Cat.5e/6/7 Transmitter is a great solution for extending HD audio and video as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances of up to 100 meters. Multiple data and control interfaces are provided, including IR, RS-232 and LAN connections. This Transmitter complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. Despite HDBaseT’s 10.Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be processed and extended by the use of AVLC (Adaptive Visually Lossless Compression) when connected to a compatible AVLC Receiver. Beyond video, data, and control this unit also contains useful audio features. The Optical Audio Return (OAR) feature supports transmitting optical audio back from a compatible Receiver for local playback. Rounding out the feature set is robust EDID management as well as automatic HDBaseT clock stretching and TMDS re-clocking support. This Transmitter (PSE) can provide 48V PoH (Power over HDBaseT) to a compatible Receiver (PD), allowing for greater flexibility within different installation scenarios.

HDMI with HDR, 3D & 4K@60Hz support
Supports Deep Color input and output up to 12-bit
Supports CEC bypass
Simultaneous transmission of uncompressed video, audio and data over a single Cat.5e/6/7 cable up to 100m/328ft at 1080p60 and 70m/230ft at 4K
HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, 48V PoH, and Control (bidirectional IR/RS-232 pass-through)

Interfaces
Input Port	1 x HDMI(Type-A)
Output Port	1×HDBaseT (RJ45) 1×S/PDIF (TOSLINK)
Pass-through Port	1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 1×LAN (RJ45)
Control I/O	1×USB (Mini-B)
Pass-through/ Control Port	1×RS-232 (3-pin Terminal Block)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4K@60 8bit YUV 4:4:4, HDR 12
Output Signal Type	4K@60 8bit YUV 4:4:4, HDR 12

Resolutions
Maximum Input	HDMI	4096×2160p@60
Maximum Output	HDBaseT	4096×2160p@60

Power
Power Supply	48V/0.83A DC (US/EU standards, CE/ FCC/UL certified)
Power Consumption	7W/14W (PoH)

Enclosure
Chassis Material	Aluminum
Chassis Color	Black
Dimensions (W×H×D)	163mm×16mm×78mm [Case Only] 183mm×16mm×81mm [All Inclusive]
Weight	200g

Field Firmware Update
Interface	USB Flash Drive

Ordering Information
Model No.	Product Description
CH-1529TXV	UHD+ HDMI over HDBaseT Transmitter with HDR / OAR
CH-1529RXV	UHD+ HDMI over HDBaseT Receiver with HDR / OAR
