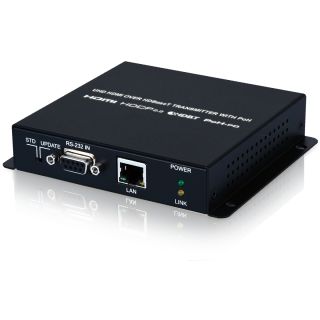

UHD HDMI over HDBaseT Transmitter with PoH (4K@60 420 up to 70M) - Cypress CH-2527TX

UHD HDMI over HDBaseT Transmitter with PoH (4K@60 420 up to 70M) - Cypress CH-2527TX

Artikelnummer: CH-2527TX
HAN: CH-2527TX
Kategorie: Extenders
Hersteller: Cypress Technology

This transmitter and receiver set is a great solution for extending uncompressed HD audio and video as well as Ethernet and cont ...

344,95 €

exkl. 19% USt. , zzgl.

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This transmitter and receiver set is a great solution for extending uncompressed HD audio and video as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances of up to 100 meters. Multiple data and control interfaces are provided, including IR, RS-232 and LAN connections. This extender set complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. The Transmitter (PD) is powered by 48V PoH (Power over HDBaseT) provided by the Receiver (PSE), allowing for greater flexibility within different installation scenarios.

HDMI with 3D & 4K support, DVI 1.0 compatible
Supports resolutions up to 4K@50/60Hz (4:2:0, 8-bit)
Supports CEC bypass
Simultaneous transmission of uncompressed video, audio and data over a single 100m/328ft Cat.5e/6/7 cable at 1080p60 and 70m/230ft at 4K
HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, 48V PoH, and Control (bidirectional IR/RS-232 pass-through)
Supports standard 48V PoH from Receiver (PSE) to Transmitter (PD) (compatible Transmitters only)

Notes:

The 48V PoH function is designed to power compatible Transmitter units only. Non-PoH Transmitters will need their own power supply. Other brands of Transmitter may not be compatible.
The use of “Premium High Speed HDMI” cables is highly recommended for displaying 3D and 4K content and compatible display equipment is required.

Interfaces
Input Port	1 x HDMI (Type-A)
Output Port	1 x HDBaseT (RJ-45)
Control I/O	1 x LAN (RJ-45)
Pass-through Port	1 x IR Extender (3.5mm) 1 x IR Blaster (3.5mm) 1 x RS-232(DE-9)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4K@60 YUV 4:2:0
Output Signal Type	4K@60 YUV 4:2:0

Resolutions
Maximum Input	HDMI	4096×2160p@60 YUV 4:2:0
Maximum Output	Cat.5e/6/7	4096×2160p@60 YUV 4:2:0

Power
Power Supply	48V/0.83A DC (US/EU standards, CE/ FCC/UL certified)
Power Consumption	4.71W

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	128mm×25mm×108mm (W×H×D) [Case Only] 128mm×25mm×117m (W×H×D) [All Inclusive]
Weight	366g

Field Firmware Update
Interface	PC Update, WebGUI

Ordering Information
Model No.	Product Description
CH-2527TX	UHD HDMI over HDBaseT Transmitter with PoH
CH-2527RX	UHD HDMI over HDBaseT Receiver with PoH
